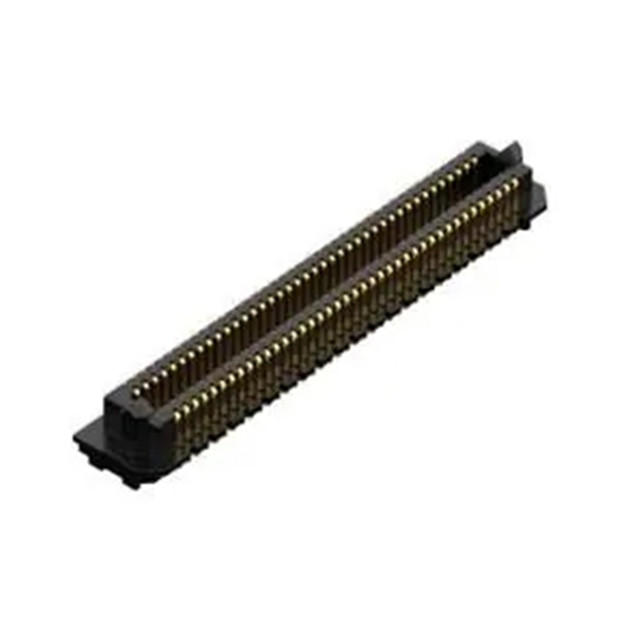

The ADM6-80-01.5-L-4-0-A-TR is a high density board-to-board connector in the Samtec AcceleRate® HD series, which is mainly used in industrial automation, data communication, embedded systems and other fields requiring high-speed signal integrity ‌.

Main feature

Very high density, I/O up to 320

Lightweight type 5 mm to 16 mm stack height

5 mm slim width

4 row design; 80 pin positions per row

Edge Rate® terminal system optimized for signal integrity performance

Support 64 Gbps PAM4 (32 Gbps NRZ) applications

PCIe® 6.0/CXL® 3.2 capability

The ADM6-80-01.5-L-4-0-A-TR connector is particularly suitable for scenarios that require high-density connections and high-speed data transmission. Its thin design and multi-row sandwich structure make it possible to achieve high density connections in a compact space ‌.

Technical parameter

Number of positions: 320 positions

Pitch: 0.635mm (0.025in)

Row number: 4 rows

Stacking height: 2.9mm

Current rating: 1.34A

Voltage rating: 155 VAC, 219 VDC

Maximum data rate: 64 Gbps

Minimum operating temperature: -55 C

Max. operating temperature: + 125 C
