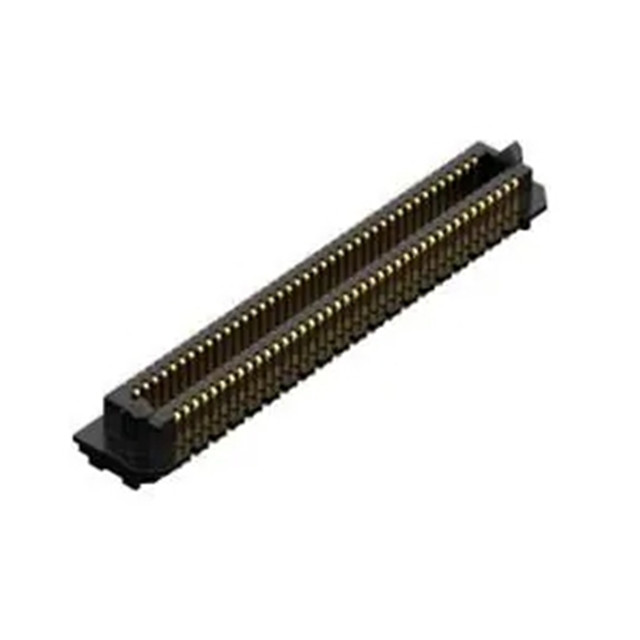

The ADM6-50-01.5-S-4-2-A-FR is Samtec's AcceleRate® HD series of high-density board to board connectors. It features a 4-row pin design with 50 pin positions per row and a spacing of 0.635mm for high-speed signal transmission and compact device layouts ‌.

Main characteristics

High density design ‌ : The ADM6-50-01.5-S-4-2-A-FR pins provide ultra-dense multi-row sandwich connectors with a pitch of 0.635 mm and support 64 Gbps PAM4 (32 Gbps NRZ) applications.

Signal integrity ‌ : The ADM6-50-01.5-S-4-2-A-FR pin has optimized signal integrity performance to ensure stability and reliability in high-speed transmission ‌.

Compatibility ‌ : Compatible with PCIe® Gen 5, suitable for various high-speed data transmission requirements ‌.

Flexibility and durability ‌ : The open pin field design provides good grounding and wiring flexibility, while the pins are made of durable materials to ensure long-term stability ‌.

Application scenario

High-speed communication equipment ‌ : ADM6-50-01.5-S-4-2-A-FR Used for high-speed signal transmission scenarios such as 5G base stations and optical modules ‌. ‌ industrial automation ‌ : integrated in PLC, motor drive module, support high-density wiring ‌.

Test and measurement instruments ‌ : adapt spectrum analyzer, oscilloscope and other equipment to ensure signal integrity ‌.
