Commodity Model:ADM6-30-03.5-S-4-0-A-TR

Trade Name:Board-To-Board & Mezzanine Connectors

Brand:Samtec

Particular Year:25+

Package:120POS

Delivery Date:New and original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Samtec
Model
ADM6-30-03.5-S-4-0-A-TR
Package
120POS
Describe
0.635mm pitch AcceleRate® HD high-density 4-bar plug connectors

Product Description

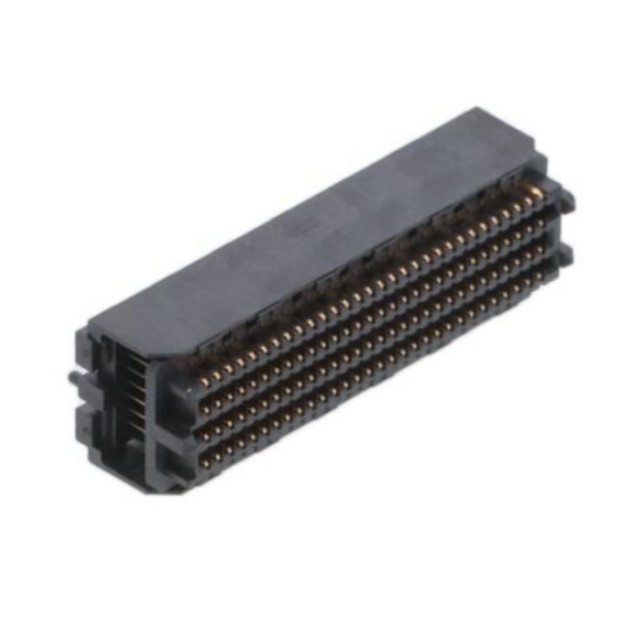

The ADM6-30-035-S-4-0-A-TR is A high-density board-to-board connector that is part of Samtec's AcceleRate® HD family. It has a 0.635mm pitch, supports high density interconnects and is suitable for compact electronic devices ‌. Adm6-30-035-s-4-0-a-tr connector adopts 4-row design; With 30 pin positions per row, high-speed signal transmission is supported for high-speed protocols such as PCIe® Gen 5 and 64Gbps PAM4 ‌.


The ADM6-30-035-S-4-0-A-TR has the following specifications:

Type: Plug

Number of positions: 120 positions

Pitch: 0.635mm (0.025in)

Row number: 4 rows

End type: Solder Balls

Mounting Angle: Straight

Stack height: 4.9mm

Current rating: 1.34A

Voltage rating: 155 VAC, 219 VDC

Maximum data rate: 64 Gbps

Minimum operating temperature: -55 C

Max. operating temperature: + 125 C

Contact plating: Gold

Contact material: Copper Alloy

Shell material: Liquid Crystal Polymer (LCP)

Data rate: 64 Gbps


Associated Products

Model

Brand

Package

Quantity

Describe

SEAM-50-01-S-10-2-RA-TR

Samtec

500POS

1500

500-position connector, high-density array, male, surface mount, right angle, gold-plated

SEAM-30-09.0-S-08-2-A-K-TR

Samtec

240POS

1240

240-position connector, high-density array, male, surface mount, gold-plated

SEAF-50-01-S-10-2-RA-TR

Samtec

500POS

1500

500-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-50-01-S-08-2-RA-TR

Samtec

400POS

1400

400-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-50-01-S-06-2-RA-TR

Samtec

300POS

1300

300-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-50-01-S-04-2-RA-TR

Samtec

200POS

1200

200-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-50-01-L-10-2-RA-TR

Samtec

500POS

1500

500-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-50-01-L-08-2-RA-TR

Samtec

400POS

1400

400-position connector, high-density array, female, surface mount, right angle, gold-plated

SEAF-50-01-S-04-2-RA-K-TR

Samtec

200POS

3000

200POS, SEARAY™ High Speed Right Angle Open Terminal Array Receptacle

SEAF-50-01-S-06-2-RA-GP-K-TR

Samtec

300POS

2000

SEARAY™ High-Speed Board-to-Board Connector
