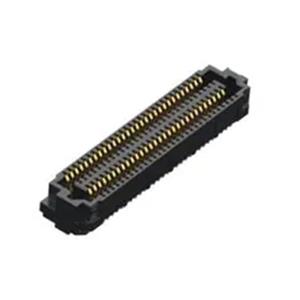

The ADF6-60-03.5-S-4-2 FR is a high-density board-to-board connector from Samtec, developed specifically for high-speed signal transmission and compact design needs. It has a 4-row design; Each row has 60 pin positions, and its core spacing is ‌0.635mm‌, which supports high-density signal transmission.

Main characteristics

Spacing ‌ : 0.635 mm

Row number ‌ : 4 rows

Mounting method ‌ : Surface Mount (SMT)

Package type ‌ : braided packaging, suitable for automatic production ‌

Signal integrity ‌ : Supports PCIe® Gen 5 protocol with transmission rates up to 64 Gbps PAM4 (32 Gbps NRZ)

Contact resistance ‌ : <20 mΩ

Insulation resistance ‌ : >1 GΩ

Rated current ‌ : 0.5A/contact ‌

Operating temperature range ‌ : -55°C to +125°C

Contact coating ‌ : 50 µ" gold plating for high reliability and corrosion resistance

Material ‌ : LCP insulator, copper alloy contact ‌

The ADF6-60-035-S-4-2 FR connector is suitable for industrial or consumer electronic devices requiring high density, high reliability and high speed signal transmission ‌, such as:

‌1. Data communication ‌ : used for 100G/200G Ethernet switches and routers to achieve high-density interconnection ‌.

‌2, industrial automation ‌ : adaptive PLC module and sensor interface, support high-speed data transmission ‌.

• 1.Is the inventory and price seen on the platform accurate?

  A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.

• 2.Are all our products genuine?

  A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.

• 3.Can you provide the qualification certificate of the original factory or agent?

  A: at present, our self-employed brands TI，ST，ADI，NXP，LATTICE，CYPRESS，INFINEON，XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.

• 4.Can I make an inquiry through the company's website?

  A: You can inquire through the website, or by phone and email.

• 5.When can I deliver the goods after placing an order? How long will it take to get there?

  A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.

• 6.Can the company issue an invoice?

  A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
