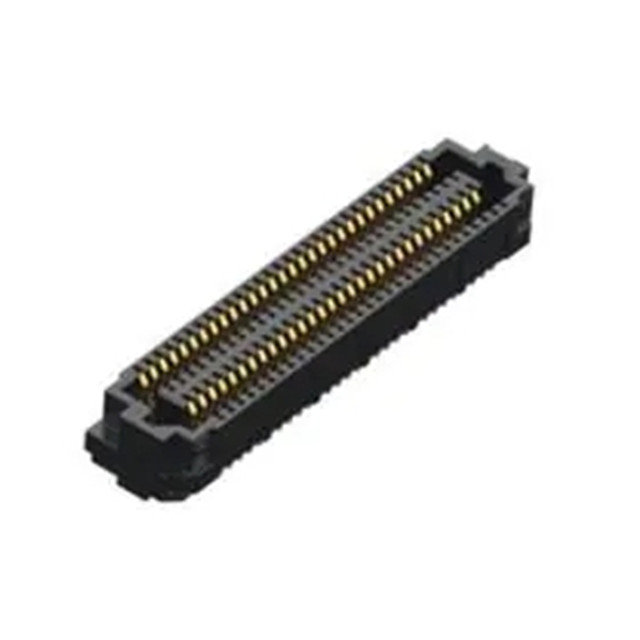

The ADF6-30-035-S-4-0-A-TR is A high-density board-to-board connector in the Samtec AcceleRate® HD series with the following core parameters:

Number of positions: 120 positions

Pitch: 0.635mm (0.025in)

Row number: 4 rows

End type: Solder Balls

Mounting Angle: Straight

Stacking height: 3.23mm

Current rating: 1.34A

Voltage rating: 155 VAC, 219 VDC

Maximum data rate: 64 Gbps

Minimum operating temperature: -55 C

Max. operating temperature: + 125 C

Contact plating: Gold

Contact material: Copper Alloy

Shell material: Liquid Crystal Polymer (LCP)

Data rate: 64 Gbps

In addition, the ADF6-30-03.5-S-4-0-A-TR connector adopts 0.635mm pitch and 4-row design to support high-density interconnection, mainly used for board to board connection, such as data center, communication equipment, high-performance computing and other fields of high-density, high-speed signal transmission needs ‌.
