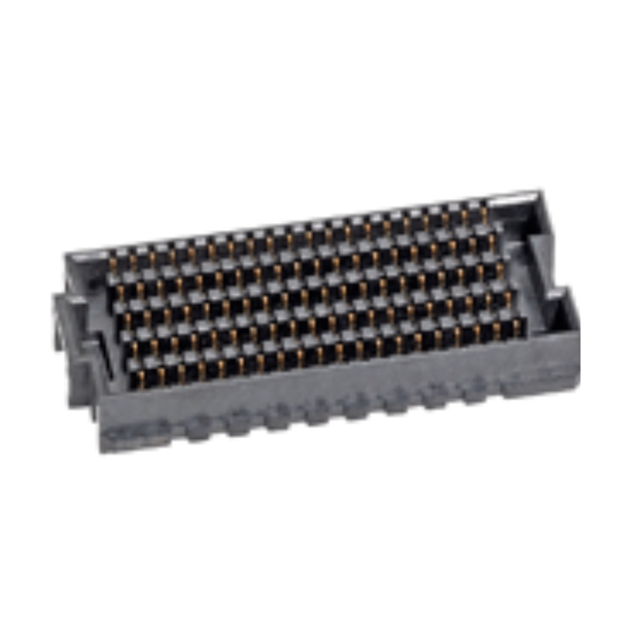

The 45971-2115 is a 200-position SEARAY® series board-to-board connector from Molex for use in high-density signal transmission scenarios ‌. The connector features a QSOP/SMT surface mount design and ADAPTS to the compact circuit layout ‌.

Application scenario ‌

Communication equipment ‌ : 45971-2115 can be used for high-speed data interface inter-board connections, such as server or base station internal module interconnection ‌. ‌

Industrial control ‌ : 45971-2115 Support high-density PCB stacking (sandwich connection), suitable for automation equipment main control board design ‌.

Consumer electronics ‌ : High reliability interconnect ‌ for internal modules of portable devices.

Basic parameter

Needle number: 200

Spacing: 0.050" (1.27mm)

Number of rows: 10

Mounting type: Surface mount type

Features: Board guide

Contact surface treatment: gold plating

Contact surface treatment thickness: 30.0µin (0.76µm)

Joint stack height: 7mm, 7.5mm, 8mm, 8.5mm, 9.5mm, 10mm, 12mm

Board height: 0.199" (5.05mm)

Basic product number: 45971-2115
