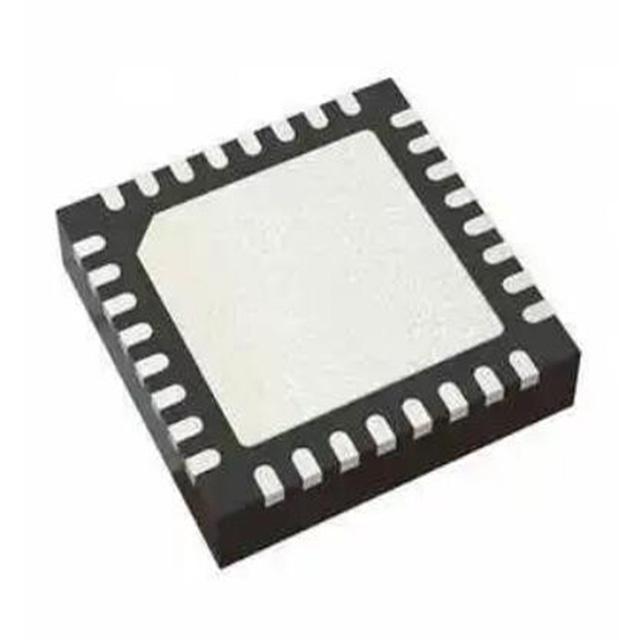

S9S12ZVLS3AMFMR is an automotive 16-bit microcontroller family using the 180nm NVM + UHV technology that offers the capability to integrate 40V analog components.

S9S12ZVLS3AMFMR includes error correction code (ECC) on RAM, FLASH and EEPROM for diagnostic or data storage, a fast analog-to-digital converter (ADC) and a frequency modulated phase locked loop (IPLL) that improves the EMC performance.

Product Features

32, 16 or 8 KB on-chip flash with ECC

128 byte EEPROM with ECC

1024 or 512 byte on-chip SRAM with ECC

Phase locked loop (IPLL) frequency multiplier with internal filter

1 MHz internal RC oscillator with +/-1.3% accuracy over rated temperature range

4-20 MHz amplitude controlled pierce oscillator

Internal COP (watchdog) module

One serial peripheral interface (SPI) module

Up to one additional SCI (not connected to LIN physical layer)

One on-chip LIN physical layer transceiver fully compliant with the LIN 2.2 standard

6-channel timer module (TIM0) with input capture/output compare

2-channel timer module (TIM1) with input capture/output compare

Inter-IC (IIC) module

8-channel Pulse Width Modulation module (PWM)

High Voltage Input (HVI)

Supply voltage sense with low battery warning

On-chip temperature sensor, temperature value can be measured with ADC or can generate an high temperature warning

Up to 23 pins can be used as keyboard wake-up interrupt (KWI)
