The S9S12GA64J0MLF microcontrollers are a family of 16-bit MCUs optimised for low cost, high performance and low pin count.The S9S12GA64J0MLF is suitable for general purpose automotive and industrial applications requiring CAN or LIN/SAE J2602 communication, including body controllers, occupant detection, door modules, seat controllers, RKE receivers, smart actuators, lighting modules and smart junction boxes. These MCUs bridge the gap between high-end 8-bit MCUs and high-performance 16-bit MCUs.

Product Attributes

Core Processor: S12

Core specification: 16-bit

Speed: 25MHz

Connectivity: CANbus, IrDA, LINbus, SCI, SPI

Peripherals: LVD, POR, PWM, WDT

Number of I/O: 40

Program memory capacity: 64KB (64K x 8)

Program memory type: Flash

EEPROM Size: 2K x 8

RAM Size: 4K x 8

Voltage - Supply (Vcc/Vdd): 3.13V ~ 5.5V

Data Converter: A/D 12x12b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Mounting Type: Surface Mount

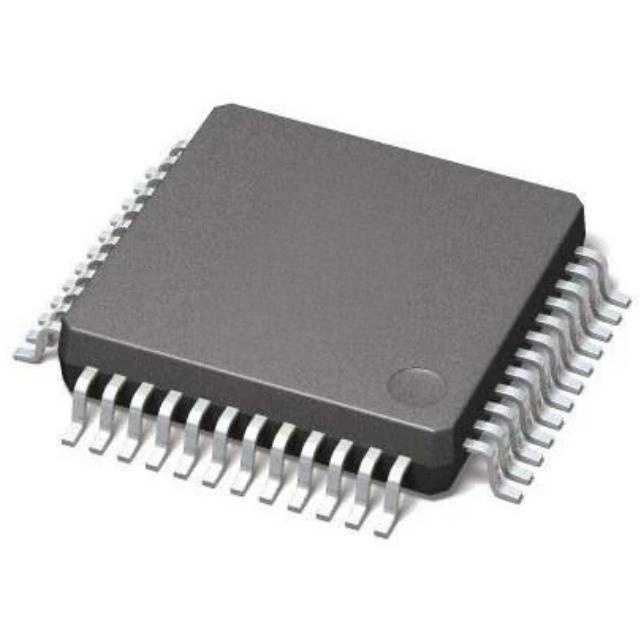

Package/Case: 48-LQFP

Supplier Device Package: 48-LQFP (7x7)

Applications

• Body Controllers

• Door Modules

• HVAC

• Seat controllers

• Smart Actuators

• RKE Receiver

• Occupant detection

• Lighting Module

• Intelligent Junction Box

• Fuel Pump

• Fuel Pump
