The S9KEAZ128ACLHR microcontrollers are cost-effective ARM®-based solutions for a wide range of automotive applications and are pin-compatible with the Kinetis EA family and future Kinetis automotive product families. The family includes a suite of analogue, communication, timing and control peripherals with different flash sizes and pin counts. These scalable devices are very robust and have strong ESD/EMC performance for cost-sensitive automotive applications. The family is supported by several development tools and reference hardware and software to help users get their designs off the ground quickly.

Product Attributes

Core Processor: ARM® Cortex®-M0+

Core specification: 32-bit single core

Speed: 48MHz

Connectivity: CANbus, I²C, LINbus, SPI, UART/USART

Peripherals: LVD, POR, PWM, WDT

Number of I/O: 58

Program memory capacity: 128KB (128K x 8)

Program memory type: Flash

EEPROM Capacity: -

RAM Size: 16K x 8

Voltage - Supply (Vcc/Vdd:;2.7V ~ 5.5V)

Data Converter: A/D 16x12b SAR

Oscillator Type: Internal

Operating Temperature: -40°C ~ 85°C (TA)

Mounting Type: Surface Mount

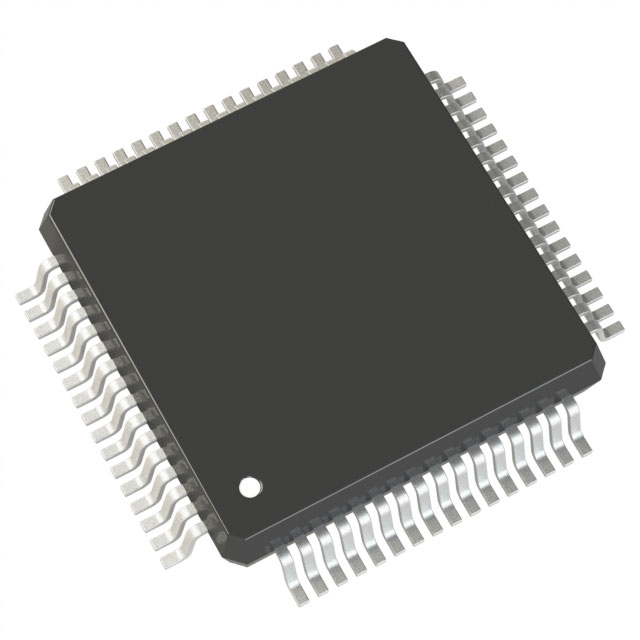

Package/Case: 64-LQFP

Supplier Device Package: 64-LQFP (10x10)

Applications

• Infotainment connectivity modules

• Parking assistance

• DC/DC motor control

• Electronic parking brake

• TPMS

• Motorbike CDI/EFI

• Battery Management

• Pump/Fan Controller

• Passive Push Button Start

• Ambient Lighting

• BCM/HVAC

• Windows/Doors/Sunroof

• Seats/Mirrors/Wipers

• owertrain Assist Chips

• General Purpose Sensor Nodes
