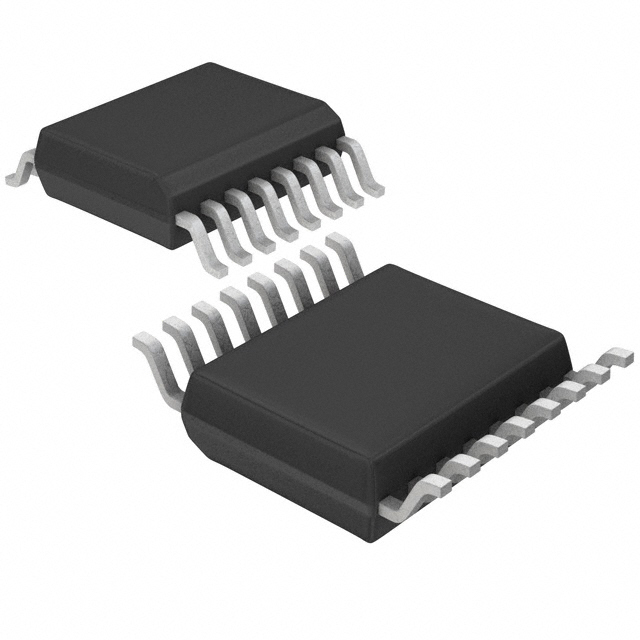

S9S08RN8W2MTG is 8-Bit S08 central processor unit (CPU), Up to 20 MHz bus at 2.7 V to 5.5 V across temperature range of -40 °C to 125 °C.

S9S08RN8W2MTG is S08 core, 8-bit Microcontrollers - MCU, Up to 16 KB flash read/program/erase over full operating voltage and temperature.

Product Attributes

Core Processor: S08

Core Size: 8-Bit

Speed: 20MHz

Connectivity: I²C, LINbus, SPI, UART/USART

Peripherals: LVD, POR, PWM, WDT

Number of I/O: 12

Program Memory Size: 8KB (8K x 8)

Program Memory Type: FLASH

EEPROM Size: 256 x 8

RAM Size: 2K x 8

Voltage - Supply (Vcc/Vdd): 2.7V ~ 5.5V

Data Converters: A/D 8x10b

Oscillator Type: Internal

Operating Temperature: -40°C ~ 125°C (TA)

Product Features

8-Bit S08 central processor unit (CPU)

Up to 20 MHz bus at 2.7 V to 5.5 V across temperature range of -40 °C to 125 °C

Supporting up to 40 interrupt/reset sources

Supporting up to four-level nested interrupt

On-chip memory

Up to 16 KB flash read/program/erase over full operating voltage and temperature

Up to 256 byte EEPROM with ECC; 2-byte erase sector; EEPROM program and erase while executing code from flash

Up to 2048 byte random-access memory (RAM)

Flash and RAM access protection
