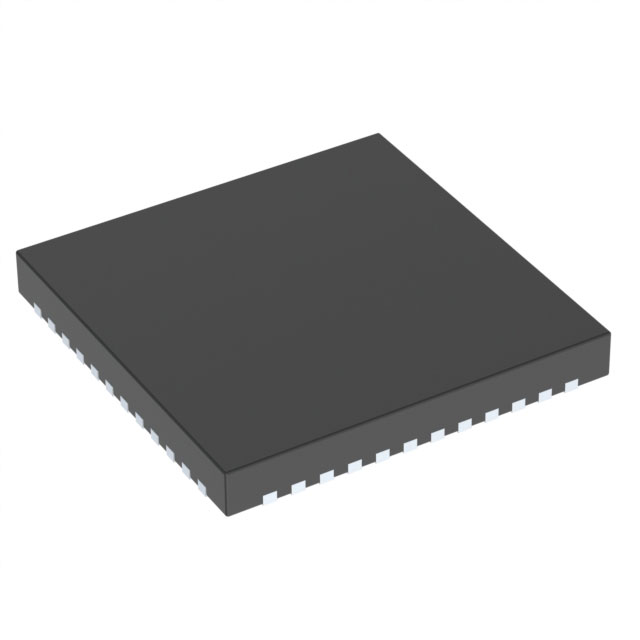

LPC5502JHI48QL is an Arm Cortex-M33 based microcontroller for embedded applications. LPC5502JHI48QL devices include CASPER Crypto engine, up to 256 KB on chip flash,up to 96 KB of on-chip SRAM,PRINCE module for on-the-fly flash encryption/decryption,Code Watchdog,high-speed/full-speed USB host and device interface with crystal-less operation for full-speed,CAN FD,five general-purpose timers,one SCTimer/PWM,one RTC/alarm timer,one 24-bit Multi-Rate Timer,a Windowed Watchdog Timer,nine flexible serial communication peripherals,Programmable Logic Unit,one 16-bit 2.0 Msamples/sec ADC capable of simultaneous conversions,comparator,and temperature sensor.

Features

Running at a frequency of up to 96 MHz

Integrated digital signal processing (DSP) instructions.

TrustZone®, Floating Point Unit (FPU) and Memory Protection Unit (MPU).

Arm Cortex M33 built-in Nested Vectored Interrupt Controller (NVIC).

Non-maskable Interrupt (NMI) input with a selection of sources.

Serial Wire Debug with eight breakpoints and four watch points. Includes Serial Wire Output for enhanced debug capabilities.

System tick timer.

CASPER Crypto co-processor is provided to enable hardware acceleration for various functions required for certain asymmetric cryptographic algorithms, such as, Elliptic Curve Cryptography (ECC).

On-chip memory:

Up to 256 KB on-chip flash program memory with flash accelerator and 512byte page erase and write.
