Trade Name:FPGA-Field Programmable Gate Array
Brand:Lattice
Particular Year:24+

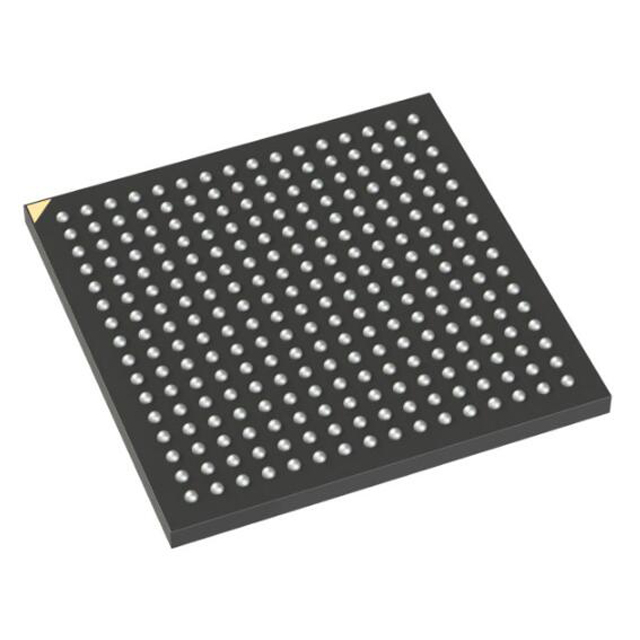

Package:CABGA-256
Delivery Date:New and Original
Stock: 3000pcs
LFCPNX-50-7CBG256C: Advanced General Purpose FPGA - CertusPro™-NX Field Programmable Gate Array ICs
LFCPNX-50-7CBG256C - Lowest power consumption and smallest package to deliver 10G SERDES - Supports up to 8 SERDES channels up to 10.3 Gbps per channel in a package as small as 9x9mm. Up to 4x lower power consumption than comparable FPGAs.
LFCPNX-50-7CBG256C - Larger on-chip memory with LPDDR4 support - up to 7.3 Mb on-chip memory. The only FPGA in its class to support LPDDR4. 1066 Mbps LPDDR4, DDR3/3L, LPDDR2 support.
LFCPNX-50-7CBG256C - Built on the Lattice Nexus platform - Industry-leading power efficiency. Device has 100x lower soft error rate (SER) and 100x higher reliability due to 28 nm FD-SOI technology.
LFCPNX-50-7CBG256C Product Attributes:
Series: CertusPro™-NX
Number of LABs/CLBs: 13000
Number of Logic Elements/Cells: 52000
Total RAM Bits: 1769472
Number of I/Os: 167
Voltage - Supply: 0.95V ~ 1.05V
Mounting Type: Surface Mount
Operating Temperature: 0°C ~ 85°C (TJ)
Package/Housing: 256-LFBGA
Supplier Device Package: 256-CABGA (14x14)
LFCPNX-50-7CBG256C Product Features:
Up to 100 K Logic Cells, 7.3 Mb Embedded Memory Modules (EBR, LRAM), 156 18 x 18 Multipliers, 299 Programmable IOs, 8 SERDES Channels (up to 10.3 Gbps each), Support for Mainstream Protocols (10 G Ethernet, PCIe Gen 3, DisplayPort, SLVS-EC and CoaXPress)
Packages as small as 9x9 mm2 with 0.5, 0.8 and 1.0 mm ball pitch options
Power consumption modes - user selectable low-power or high-performance modes, enabled by FD-SOI programmable feedback biasing
Design security - ECDSA bitstream authentication and strong AES-256 encryption
Fast Configuration - I/O configuration in 4 ms, 100 K logic single components fully configured in 30 ms
Commercial, industrial and automotive (AEC-Q100 certified) temperature ratings available
