Trade Name:Board-to-Board Connectors
Brand:Samtec
Particular Year:24+
Package:32POS
Delivery Date:New and Original
Stock: 1000pcs

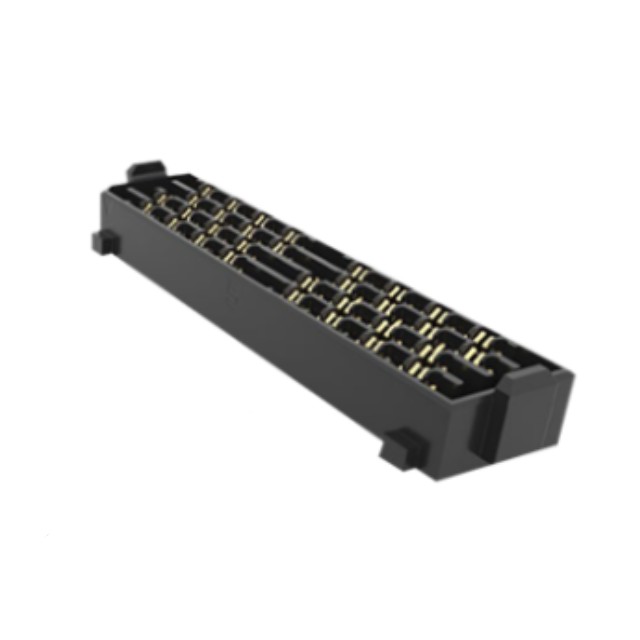

The NVAM-DP-02-2-05.0-S-2-K-TR is a NovaRay connector featuring crosstalk down to 40GHz+, 112Gbps PAM4 per channel and 112 fully shielded differential pairs per square inch.
Product Attributes:
Model Number: NVAM-DP-02-2-02.0-S-2-K-TR
Series: NOVARAY®
Connector Type: High Density Array, Male
Number of pins: 32
Number of rows: 2
Mounting Type: Surface Mount
Features: Board Guide, Pick and Place
Contact Finish: Gold Plated
Contact Finish Thickness: 30.0µin (0.76µm)
Contact Stacking Height: 10mm, 12mm
Board Height: 0.332’ (8.43mm)
Features
0.80mm x 1.80mm leg pitch
Stack height: 7mm and 10mm
112Gbps PAM4 per channel
112 fully shielded differential pairs per square inch
4.0TBps total data rate - 9 IEEE, 400G channels
40GHz+ very low crosstalk
Tight impedance control
Studless mating
Two contacts for more reliable connections
Minimal data rate variance due to increased stack heights
40% smaller footprint than conventional arrays with the same data throughput
92Ω solution meets the needs of 85Ω and 100Ω applications
Lead-free solderable
Model
Brand
Package
Quantity
Describe
Samtec
400POS
1000
400 position connector high-density arrays, the male form SMT type gold plated
Samtec
500POS
1000
500-position connector high-density array, male surface mount type gold-plated
Samtec
300POS
1000
300-position connector high-density array, male surface mount type gold-plated
Samtec
250POS
1000
250 position connector high-density array, male surface mount type gold plated
Samtec
250POS
1000
250 position connector high-density array, male surface mount type gold plated
Samtec
250POS
1000
250 position connector high-density array, male surface mount type gold plated
Samtec
200POS
1000
200-position connector high-density array, male surface mount type gold-plated
Samtec
200POS
1000
200-position connector high-density array, male surface mount type gold-plated
Samtec
200POS
1000
200-position connector high-density array, male surface mount type gold-plated
Samtec
200POS
1000
200-position connector high-density array, male surface mount type gold-plated
