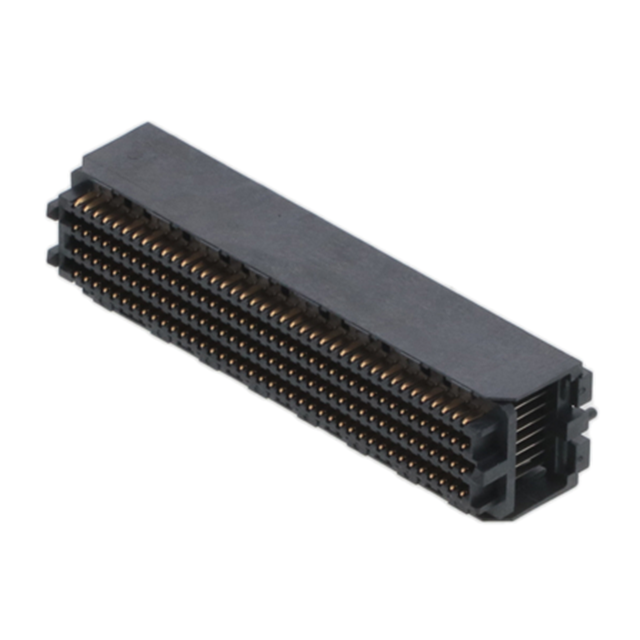

SEAM-40-11.0-S-08-2-A-K-TR is SEARAY™ High-Speed High-Density Open-Pin-Field Array Terminal Connector.

Product Attributes Of SEAM-40-11.0-S-08-2-A-K-TR

Product：Headers

Number of Positions：320 Position

Pitch：1.27 mm (0.05 in)

Number of Rows：8 Row

Termination Style：Solder

Mounting Angle：Vertical

Current Rating：2.7 A

Voltage Rating：240 VAC

Maximum Data Rate：56 Gbps

Minimum Operating Temperature：- 55 C

Maximum Operating Temperature：+ 125 C

Contact Plating：Gold

Contact Material：Copper Alloy

Housing Material：Liquid Crystal Polymer (LCP)

Application：Power, Signal

Data Rate：56 Gbps

Feature Of SEAM-40-11.0-S-08-2-A-K-TR

Maximum grounding & routing flexibility

Up to 560 Edge Rate® contacts optimized for signal integrity performance

7 mm to 40 mm stack heights

Variety of designs and options: Right-Angle, Guide Posts,85 Ω Elevated Risers, 85 Ω Tuned, Press-Fit and Press-Fit Right-Angle, Guide Post Field Termination Kits

Cable mates (SEAC Series) and Jack Screw Standoffs (JSO Series) also available

Standards: VITA 47, VITA 57.1 FMC, VITA 57.4 FMC+,VITA 74 VNX, PISMO™ 2

Supports high-speed protocols such as Ethernet,PCI Express®, Fibre Channel & InfiniBand™

Severe Environment Testing qualified (SEAM/SEAF);aligns with MIL-DTL-55302
