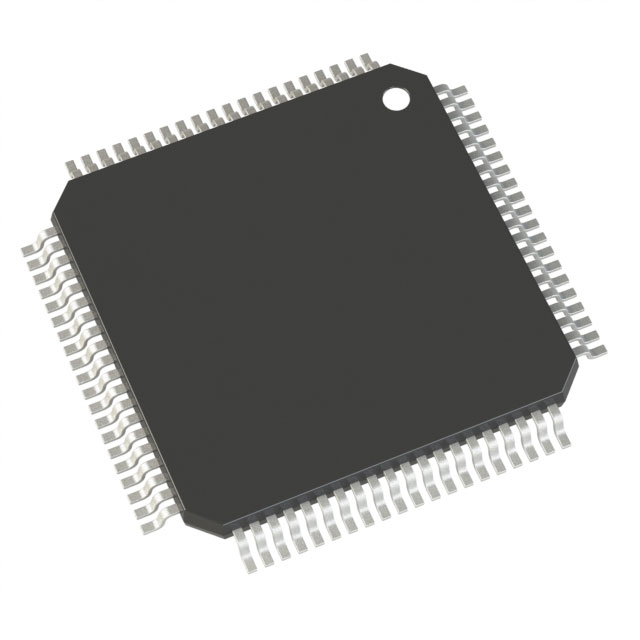

PIC18F65K22T-E/PT is 80-Pin, High-Performance, 1-Mbit Enhanced Flash MCUs with 12-Bit A/D and XLP Technology.

Low-Power Features:

Power-Managed modes:

- Run: CPU on, peripherals on

- Idle: CPU off, peripherals on

- Sleep: CPU off, peripherals off

Two-Speed Oscillator Start-up

Fail-Safe Clock Monitor

Power-Saving Peripheral Module Disable (PMD)

Ultra Low-Power Wake-up

Fast Wake-up, 1 s Typical

Low-Power WDT, 300 nA Typical

Ultra Low 50 nA Input Leakage

Run mode Currents Down to 5.5 A, Typical

Idle mode Currents Down to 1.7 A Typical

Sleep mode Currents Down to Very Low 20 nA, Typical

RTCC Current Downs to Very Low 700 nA, Typical

Special Microcontroller Features:

Operating Voltage Range: 1.8V to 5.5V

On-Chip 3.3V Regulator

Operating Speed up to 64 MHz

Up to 128 Kbytes On-Chip Flash Program Memory

Data EEPROM of 1,024 Bytes

4K x 8 General Purpose Registers (SRAM)

10,000 Erase/Write Cycle Flash Program Memory, Minimum

Self-Programmable under Software Control

Priority Levels for Interrupts

8 x 8 Single-Cycle Hardware Multiplier
