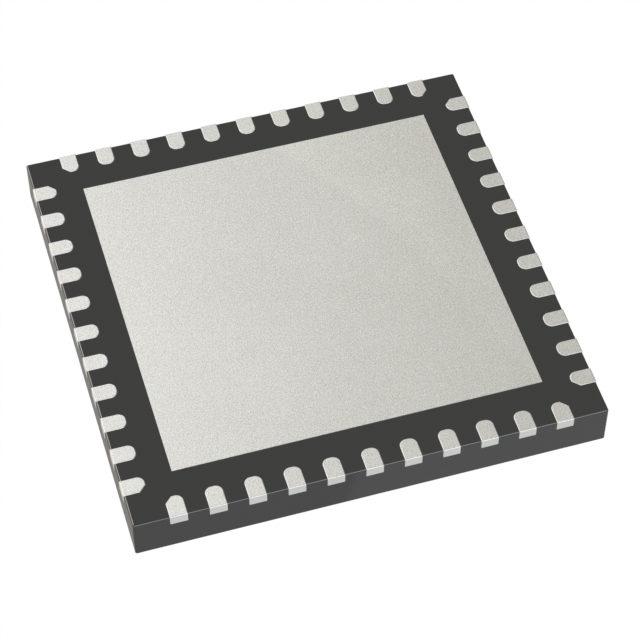

PIC18LF47K40T-I/ML - 44-Pin, Low-Power, High-Performance Microcontrollers with XLP Technology

Product Description

PIC18LF47K40T-I/ML feature analog, core independent peripherals and communication peripherals, combined with eXtreme Low-Power (XLP) technology for a wide range of general purpose and low-power applications. The 44 -pin device is equipped with a 10-bit ADC with Computation (ADCC) automating Capacitive Voltage Divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and performing automatic threshold comparisons.

Product Features

C Compiler Optimized RISC Architecture

Operating Speed:

– DC – 64 MHz clock input over the full VDD range

– 62.5 ns minimum instruction cycle

Programmable 2-Level Interrupt Priority

31-Level Deep Hardware Stack

Three 8-Bit Timers (TMR2/4/6) with Hardware Limit Timer (HLT)

Four 16-Bit Timers (TMR0/1/3/5)

Low-Current Power-on Reset (POR)

Power-up Timer (PWRT)

Brown-out Reset (BOR)

Low-Power BOR (LPBOR) Option

128K Bytes Program Flash Memory

3728 Bytes Data SRAM Memory

1024 Bytes Data EEPROM

Programmable Code Protection

Direct, Indirect and Relative Addressing modes

Operating Voltage Ranges:

– 1.8V to 3.6V (PIC18LF27/47K40 )

– 2.3V to 5.5V ( PIC18F27/47K40)

Temperature Range:

– Industrial: -40°C to 85°C

– Extended: -40°C to 125°C
