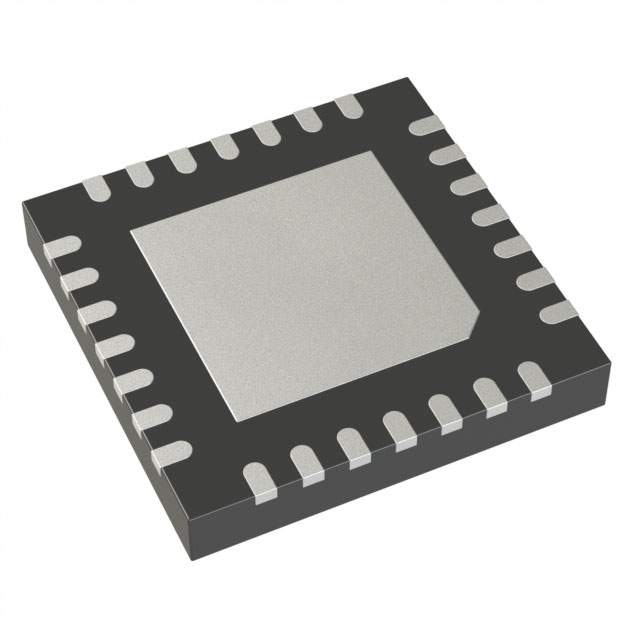

PIC18LF25K83T-I/ML is a full-featured CAN product family that can be used in automotive and industrial applications. The multitude of communication peripherals found on the product family, such as CAN, SPI, two I2Cs, two UARTs, LIN, DMX, and DALI can handle a wide range of wired and wireless (using external modules) communication protocols for intelligent applications.

Product Features

C Compiler Optimized RISC Architecture

Operating Speed:

- Up to 64 MHz clock operation

- 62.5 ns minimum instruction cycle

Up to 64 KB Flash Program Memory

Up to 4 KB Data SRAM Memory

Up to 1 KB Data EEPROM

Operating Characteristics

Operating Voltage Range:

- 1.8V to 3.6V (PIC18LF25/26K83)

- 2.3V to 5.5V (PIC18F25/26K83)

Temperature Range:

- Industrial: -40°C to 85°C

- Extended: -40°C to 125°C

eXtreme Low-Power (XLP) Features

Sleep mode: 60 nA @ 1.8V, typical

Windowed Watchdog Timer: 720 nA @ 1.8V, typical

Secondary Oscillator: 580 nA @ 32 kHz

Operating Current:

- 4 uA @ 32 kHz, 1.8V, typical

- 45 uA/MHz @ 1.8V, typical
