Trade Name:PIC18F54Q71-I/PT
Data Manual:PIC18F54Q71-I/PT.pdf
Brand:Microchip
Particular Year:23+

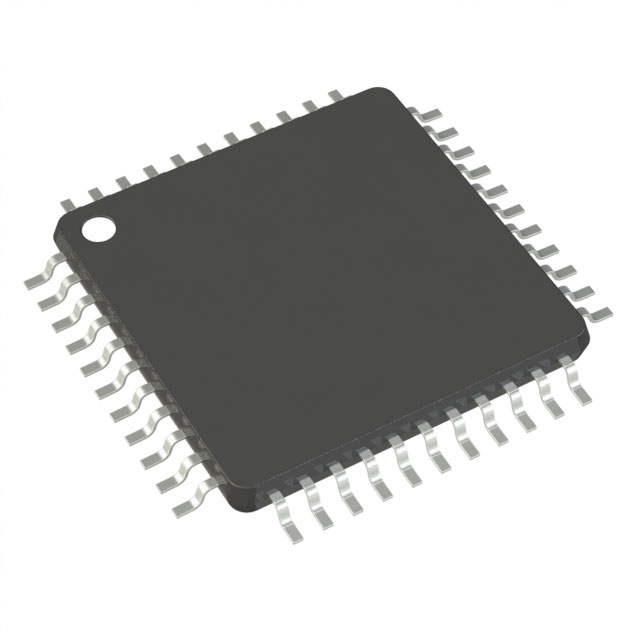

Package:44-TQFP
Delivery Date:New original
Stock: 2000pcs
PIC18F54Q71-I/PT is high bandwidth mixed signaland sensor applications. This is an ideal solution for lighting, motor control and medical market segments.
Feature
128-Level Deep Hardware Stack
Low-Current Power-on Reset (POR)
Configurable Power-up Timer (PWRT)
Brown-out Reset (BOR)
Low-Power BOR (LPBOR) Option
Up to 64 KB of Program Flash Memory
Up to 4 KB of Data SRAM Memory
256 Bytes Data EEPROM
Doze: CPU and Peripherals Running at Different Cycle Rates (CPU Is Typically Slower)
Idle: CPU Halted While Peripherals Operate
Sleep: Lowest Power Consumption
Three 16-Bit Pulse-Width Modulators (PWM)
Dual outputs for each PWM module
Integrated 16-bit timer/counter
Double-buffered user registers for duty cycles
Right/Left/Center/Variable Aligned modes of operation
Multiple clock and Reset signal selections
Three 16-Bit Timers (TMR0/1/3)
Two 8-Bit Timers (TMR2/4) with Hardware Limit Timer (HLT)
Rising and falling edge dead-band control
Full Bridge, Half Bridge, One-Channel drive modes
Multiple signal sources
Programmable dead band
Fault-shutdown input
Configurable length bytes
Arbitrary length data packets
Transmit-without-receive and receive-without-transmit options
Transfer byte counter
Separate transmit and receive buffers with 2-byte FIFO and DMA capabilities
7-bit and 10-bit Addressing modes with Address Masking modes
Dedicated address, transmit and receive buffers and DMA capabilities
Bus collision detection with arbitration
Bus time-out detection and handling
I2C, SMBus 2.0 and SMBus 3.0, and 1.8V input level selections
Provides internal ports used to interconnect digital peripherals
Module can form hardware state machines without any external pins
Interrupt-on-change and DMA triggers available on all Signal Routing pins
