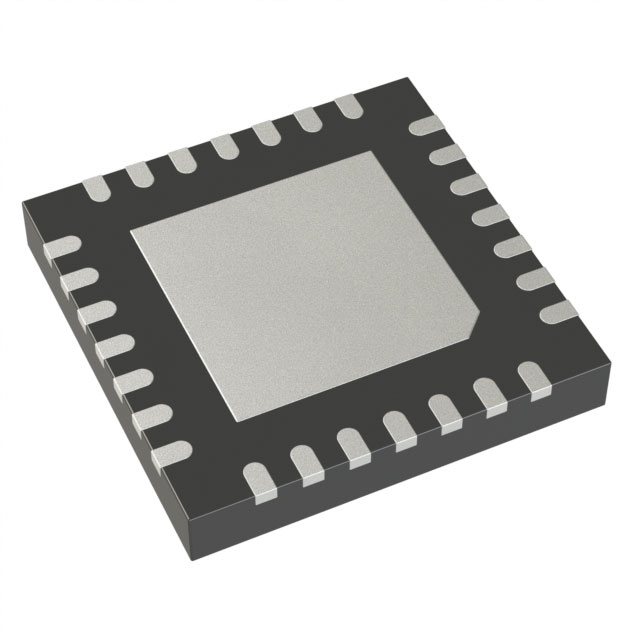

PIC32MM0128GPM028-E/ML is 32-Bit Flash Microcontroller with MIPS32® microAptiv™ UC Core, Low Power and USB.

Product Attributes

Core Processor MIPS32® microAptiv™

Core Size 32-Bit Single-Core

Speed 25MHz

Number of I/O 21

Program Memory Size 128KB (128K x 8)

Program Memory Type FLASH

RAM Size 16K x 8

Voltage - Supply (Vcc/Vdd) 2V ~ 3.6V

Data Converters A/D 12x12b

Oscillator Type Internal

Operating Temperature -40°C ~ 125°C (TA)

Mounting Type Surface Mount

Package / Case 28-VQFN Exposed Pad

Supplier Device Package 28-QFN (6x6)

Product Features

Operating Conditions: 2.0V to 3.6V, -40ºC to +125ºC, DC to 25 MHz

0.65 μA Sleep current for RAM Retention

Regulator mode and 5 μA for Regulator Standby mode

On-Chip 1.8V Voltage Regulator (VREG)

On-Chip Ultra Low-Power Retention Regulator

High-Performance 32-Bit RISC CPU

1.53 DMIPS/MHz (37 DMIPS) (Dhrystone 2.1) Performance

3.17 CoreMark®/MHz (79 CoreMark) Performance

16-Bit/32-Bit Wide Instructions with 32-Bit Wide Data Path

Two Sets of 32 Core Register Files (32-bit) to Reduce Interrupt Latency

Single-Cycle 32x16 Multiply and Two-Cycle 32x32 Multiply

64-Bit, Zero Wait State Flash with ECC to Maximize Endurance/Retention

Up to 256K Flash Memory

Up to 32K SRAM Memory

USB 2.0 Compliant Full-Speed and Low-Speed Device, Host and On-The-Go (OTG) Controller

Independent, Low-Power 32 kHz Timer Oscillator

Up to 24 Peripheral Pin Select (PPS) Remappable Pins

Three Analog Comparators with Input Multiplexing

5-Bit Comparator Voltage Reference DAC with Pin Output

Up to 24-Channel, Software-Selectable 10/12-Bit SAR Analog-to-Digital Converter (ADC)
