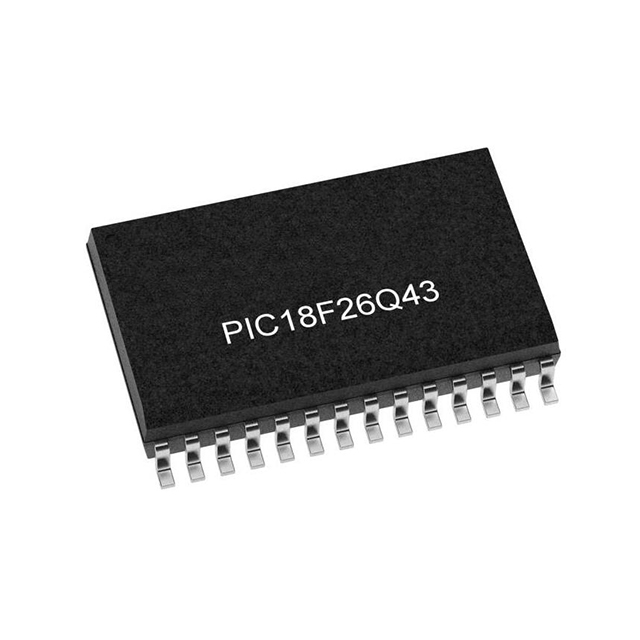

PIC18F26Q43T-I/SO is available in 28-pin devices for real-time control applications. This family features a 12-bit Analog-to-Digital Converter with Computation (ADCC) automating Capacitive Voltage Divider (CVD) techniques for advanced capacitive touch sensing, averaging, filtering, oversampling and threshold comparison.

Product Attributes

Core Processor PIC

Core Size 8-Bit

Speed 64MHz

Number of I/O 25

Program Memory Size 64KB (64K x 8)

Program Memory Type FLASH

EEPROM Size 1K x 8

RAM Size 4K x 8

Voltage - Supply (Vcc/Vdd) 1.8V ~ 5.5V

Data Converters A/D 24x12b; D/A 1x8b

Oscillator Type Internal

Operating Temperature -40°C ~ 85°C (TA)

Mounting Type Surface Mount

Package / Case 28-SOIC (0.295", 7.50mm Width)

Supplier Device Package 28-SOIC

Product Features

Up to 128 KB of Program Flash Memory

Up to 8 KB of Data SRAM Memory

1024 Bytes Data EEPROM

Operating Voltage Range: 1.8V to 5.5V

Temperature Range:

– Industrial: -40°C to 85°C

– Extended: -40°C to 125°C

High-Precision Internal Oscillator Block (HFINTOSC):

– Selectable frequencies up to 64 MHz

– ±1% at calibration

– Active Clock Tuning of HFINTOSC for better accuracy

31kHz Low-Power Internal Oscillator (LFINTOSC)

External 32kHz Crystal Oscillator (SOSC)
