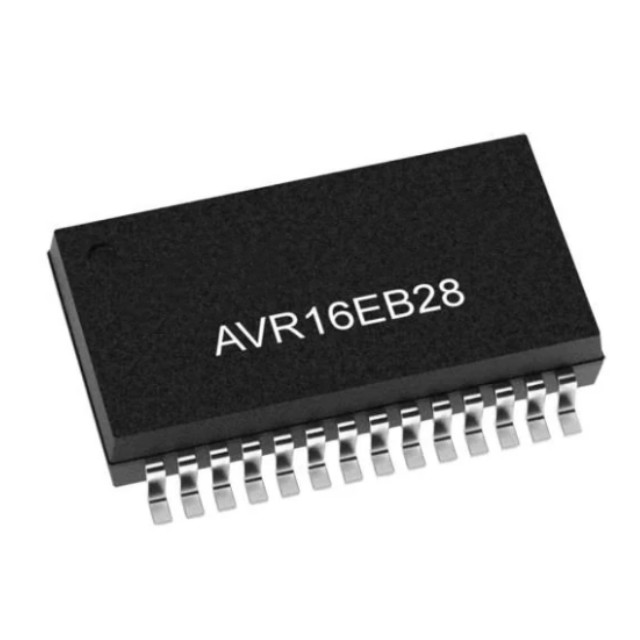

The AVR16EB28-I/SS is a microcontroller in the AVR® EB family featuring an AVR® CPU with hardware multiplier running at up to 20 MHz, 16 KB of Flash memory with a dedicated reader/writer (RWW) section, 2 KB of SRAM, and 512B of EEPROM in a 28-pin SSOP package. The family features the latest core-independent peripherals with low power consumption, including an event system, intelligent analogue and advanced peripherals.

The new 12-bit ADCs feature true differential measurement with optional hardware accumulation of up to 1024 samples, effectively providing up to 17-bit resolution. Sample rates of up to 300 ksps provide fast analogue data, and the ADC's programmable gain amplifier (PGA) amplifies both single-ended and differential analogue inputs for efficient measurement of small amplitude signals.

Product Attributes

Product Category: 8-bit Microcontrollers -MCUs

Core: AVR

Programme Memory Size: 16 kB

Data RAM size: 2 kB

Package / Case: SSOP-28

Maximum clock frequency: 20 MHz

ADC resolution: 12 bit

Supply voltage - min: 1.8 V

Supply voltage - max: 5.5 V

Mounting style: SMD/SMT

Data bus width: 8 bit

Minimum operating temperature: - 40 C

Maximum operating temperature: + 85 C

Series: AVR16EB14/20/28/33

Data Ram Type: SRAM

Data ROM Size: 512 B

Data Rom Type: EEPROM

Interface Type: I2C, SPI, UART

Number of ADC Channels: 20 Channel

Number of Timers/Counters: 4 x 16 bit

Product: MCUs

Product Type: 8-bit Microcontrollers - MCUs

Programme memory type: Flash

Number of factory packages: 47

Sub Category: Microcontrollers - MCUs

Watchdog Timer: Watchdog Time
