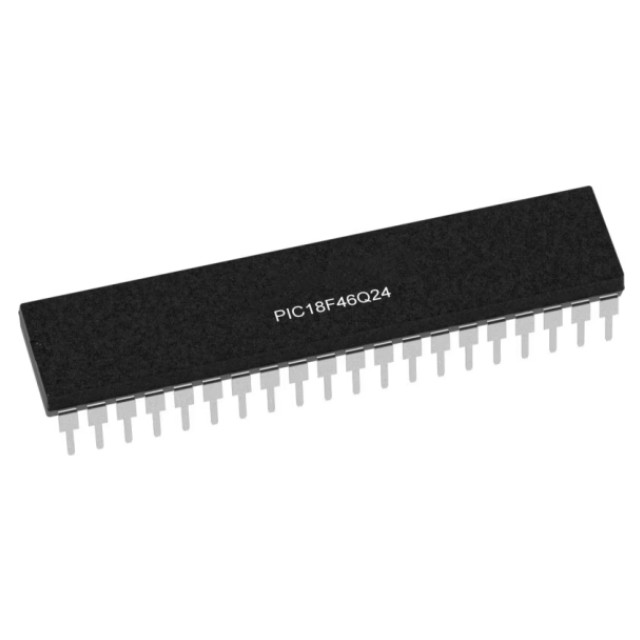

The PIC18F46Q24-I/P microcontrollers offer a range of features and functionality for sensor interface, real-time control and communication applications. The family introduces a programming and debugging interface disable module for enhanced code and data protection. It includes a multi-voltage I/O interface, a 10-bit analogue-to-digital converter with computation and an 8-bit signal routing port module for digital peripheral interconnections. This family of devices also has additional features such as vector interrupt controllers, DMA functionality, various communication protocols (UART, SPI, I2C), and memory functions such as memory access partitions and device information areas.

PIC18F46Q24-I/P Product Attributes

Product Category: 8-bit Microcontrollers -MCUs

Core: PIC18

Programme memory size: 64 kB

Data RAM size: 4 kB

Package / Case: PDIP-40

Maximum clock frequency: 64 MHz

ADC resolution: 10 bit

Number of inputs/outputs: 35 I/Os

Supply voltage - min: 1.8 V

Supply voltage - max: 5.5 V

Mounting Style: Through Hole

Data bus width: 8 bit

Minimum operating temperature: - 40 C

Maximum operating temperature: + 85 C

Family: PIC18F26/45/46/55/56Q24

DAC resolution: 8 bit

Data Ram Type: SRAM

Data ROM size: 512 B

Data Rom Type: EEPROM

Interface Type: I2C, SPI, UART

Number of ADC Channels: 22 Channel

Number of Timers/Counters: 8 Timers

Product: MCUs

Product Type: 8-bit Microcontrollers - MCUs

Program memory type: Flash

Number of factory packages: 10

Sub Category: Microcontrollers - MCUs

Watchdog Timer: Watchdog Timer, Windowed
