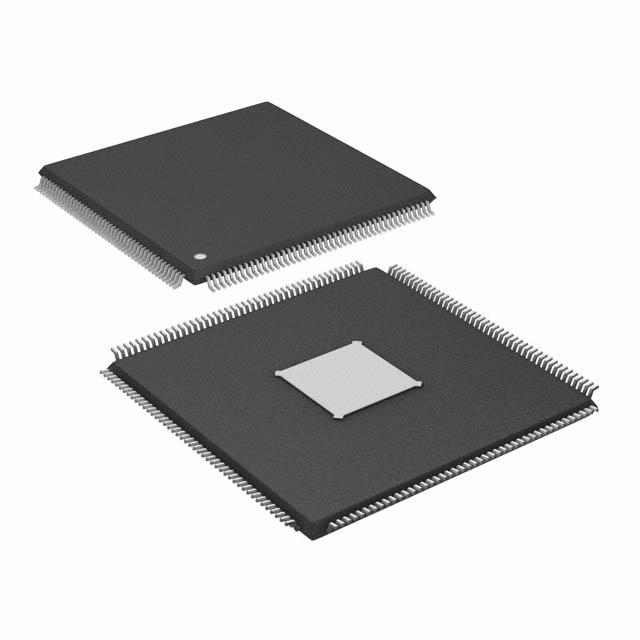

PIC32MZ2064DAA176-I/2J offers MPU like performance with ease of design of an MCU for GUI designs with it’s 2MB Flash and 640KB of SRAM, available on-chip 32MB or 128MB externally addressable DDR2 DRAM, integrated Graphics Controller, Graphics Processor, 200 MHz speed, 12-bit 18 MSPS ADC module with up to 45 analog inputs, CAN and HS USB.

Feature

200 MHz/330 DMIPS, MIPS32 microAptiv core

Dual Panel Flash for live update support

12-bit, 18 MSPS, 45-channel ADC module

Memory Management Unit for optimum embedded OS execution

microMIPS mode for up to 35% code compression

CAN, UART, I2C, PMP, EBI, SQI & Analog Comparators

SPI/I2S interfaces for audio processing and playback

Hi-Speed USB Device/Host/OTG

10/100 Mbps Ethernet MAC with MII and RMII interface

Peripheral and memory region access control

Temperature Range - 40°C to 85°C, - 40°C to 105°C (planned)

Operating voltage range of 2.3V to 3.6V

2MB Flash memory (plus an additional 160 KB of Boot Flash)

640KB SRAM memory

microMIPS mode for up to 35% smaller code size

Four 64-bit accumulators

Single-cylce MAC, saturating and fractional math

Programmable PLLs and oscillator clock sources

Dedicated PLL for DDR2

Fail-Safe Clock Monitor

Independent Watchdog and Deadman Timers

Fast wake-up and start-up

50 MHz SD/SDIO/eMMC bus interface

50 MHz External Bus Interface (EBI)

80 MHz Serial Quad Interface (SQI)

Peripheral Pin Select (PPS) functionality to enable function remap

Up to 8 channels of hardware DMA with automatic data size detection

Nine Input Capture (IC) and Nine Output Compare(OC)/PWM outputs

3-layer Graphics Controller with up to 24-bit color support

High-performance 2D Graphics Processing Unit (GPU)

Audio data communication: I2S, LJ, RJ, USB

Audio data control interface: SPI and I2C™

Up to 45 analog inputs

Can operate during sleep and idle modes

Multiple trigger sources

Six digital comparators and six digital filters

Two comparators with 32 programmable voltage references

Temperature sensor with ±2°C accuracy

Charge Time Measurement Unit (CTMU)

AEC-Q100 REVG (Grade 2 -40oC to +105oC) (Planned)

Class B Safety Library, IEC 60730

Back-up internal oscillator

In-circuit and in-application programming

4-wire MIPS® Enhanced JTAG interface

Unlimited program and 12 complex data breakpoints

IEEE 1149.2-compatible (JTAG) boundary scan

Non-intrusive hardware-based instruction trace

MPLAB Harmony – PIC32 software development framework
