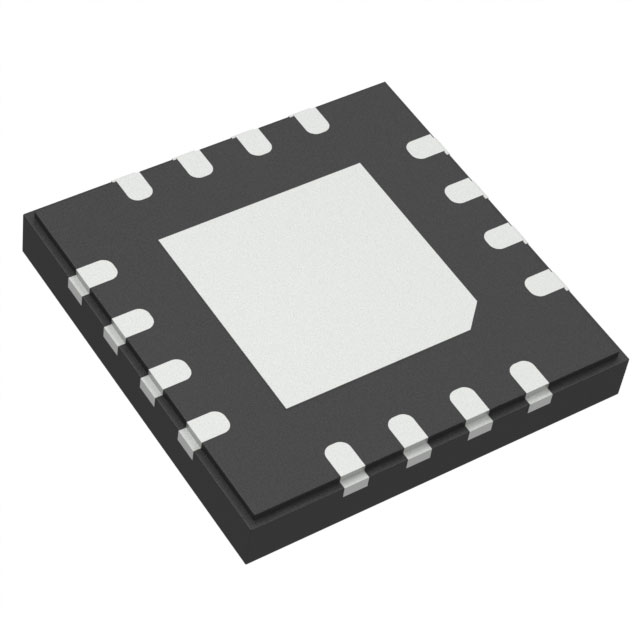

PIC16F17124-I/7N microcontroller has a suite of analog peripherals that enables precision sensor applications.This product includes a low-noise Operational Amplifier (Op-Amp), a 12-bit differential Analog-to-Digital Converter with Computation (ADCC), two 8-bit Digital-to-Analog Converters (DAC), up to four 16-bit Pulse-Width Modulation (PWM) peripherals, and many more waveform control and communication peripherals. This small form factor, feature-rich device is well suited for low-cost, energy-efficient analog sensor applications with higher resolution requirements.

Feature

C Compiler Optimized RISC Architecture

Operating Speed

DC – 32 MHz clock input

125 ns minimum instruction time

16-Level Deep Hardware Stack

Low-Current Power-on Reset (POR)

Configurable Power-up Timer (PWRT)

Brown-out Reset (BOR)

Low-Power Brown-out Reset (LPBOR)

Windowed Watchdog Timer (WWDT)

Up to 28 KB of Program Flash Memory

Up to 2 KB of Data SRAM Memory

Up to 256 Bytes of Data EEPROM Memory

Memory Access Partition (MAP) with Program Flash Memory Partitioned into

Application block

Boot block

Storage Area Flash (SAF) block

Programmable Code Protection and Write Protection

Device Information Area (DIA) Stores:

Temperature Indicator calibration coefficients

Fixed Voltage Reference (FVR) measurement data

Microchip Unique Identifier (MUI)

Device Characteristics Area (DCI) Stores:

Program/erase row sizes

Pin count details

Direct, Indirect, and Relative Addressing Modes
