The MCP251863T-E/SS device is a cost-effective and small-footprint CAN FD controller (MCP2518FD) with an integrated Transceiver (ATA6563) that can be easily added to a microcontroller with an available SPI interface. A CAN FD channel can be easily added to a microcontroller that is either lacking a CAN FD peripheral or does not have enough CAN FD channels.

MCP251863T-E/SS supports both CAN frames in the Classical format (CAN2.0B) and CAN Flexible Data Rate (CAN FD) format, as specified in ISO 11898-1:2015.

The integrated transceiver is a high-speed CAN FD Transceiver compliant with ISO 11898-2:2016 and SAE J2962-2 CAN standards. It provides a very low current consumption in Standby mode and wake-up capability via the CAN bus.

General Features

• External CAN FD Controller with Integrated CAN FD Transceiver and Serial Peripheral Interface (SPI)

• Arbitration Bit Rate Up to 1 Mbps

• Data Bit Rate up to 5 Mbps

• CAN FD Controller Modes

- Mixed CAN 2.0B and CAN FD Mode

- CAN 2.0B Mode

• Fully ISO 11898-1:2015, ISO 11898-2: 2016 and SAE J2962-2 Compliant

• Temperature Ranges:

- Extended (E): -40°C to +125°C

- High (H): -40°C to +150°C

• ISO 26262 Functional Safety Ready

• Low Electromagnetic Emission (EME) and High Electromagnetic Immunity (EMI)

• AEC-Q100 and AEC-Q006 Qualified

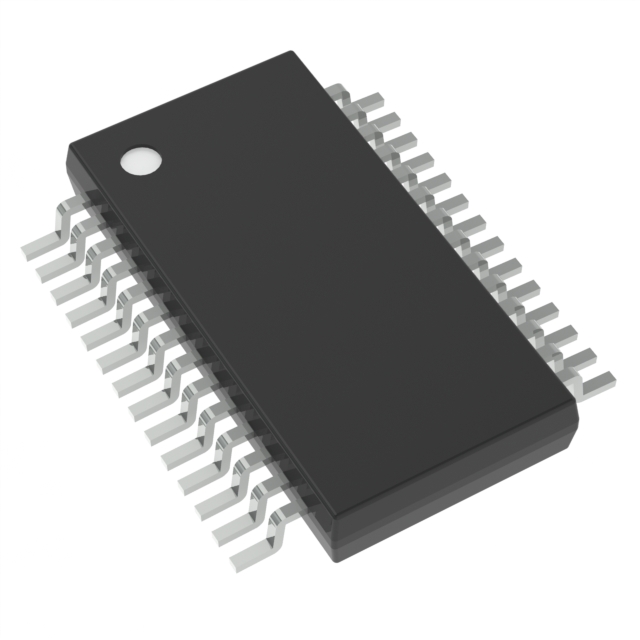

• Package: SSOP28 (Moisture Sensitivity Level 2)
