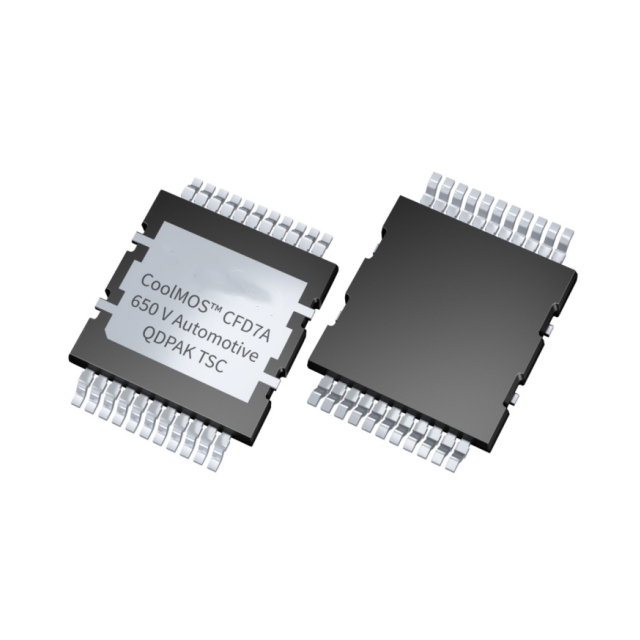

The 99mΩ IPDQ65R099CFD7A in the QDPAK top-side cooled SMD package is part of the automotive-qualified 650 V CoolMOS™ SJ power MOSFET CFD7A product family. Compared to its predecessor, the CoolMOS™ CFD7A offers higher reliability and power density with improved design flexibility. Top cooling further increases power density, reduces parasitic source inductance, and features a Kelvin source pin and 3.2 mm creepage distance.

Product Characteristics

Transistor Type: N-Channel Transistor

Technology: MOSFET (Metal Oxide)

Drain-to-source voltage (Vdss): 650 В

Current at 25°C - Continuous Drain (Id): 29A (Tc).

Supply Voltage (Max Rds On, Min Rds On): 10 В

Switching Resistance (Max) at Different Id, Vgs: 99 mOhm, 9.7 A, 10 V

Vgs(th) at different Id (max): 4.5 V @ 480 µA

Gate charge (Qg) at different Vgs (max): 39 nK at 10 V

Vgs max: ±20 V

Input capacitance (Ciss) at different Vds (max): 1942 pF @ 400 V

Power Dissipation (Max): 186 W (Tc): 186 W (Tc).

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting type: Surface mount

Scope of delivery: PG-HDSOP-22-1

Packaging / Case: 22-PowerBSOP Module

Applications

● On-board chargers

● HV-LV DC-DC converters

● Auxiliary power supplies
