Trade Name:S70KL1282GABHI020
Data Manual:S70KL1282GABHI020.pdf
Brand:INFINEON
Particular Year:23+

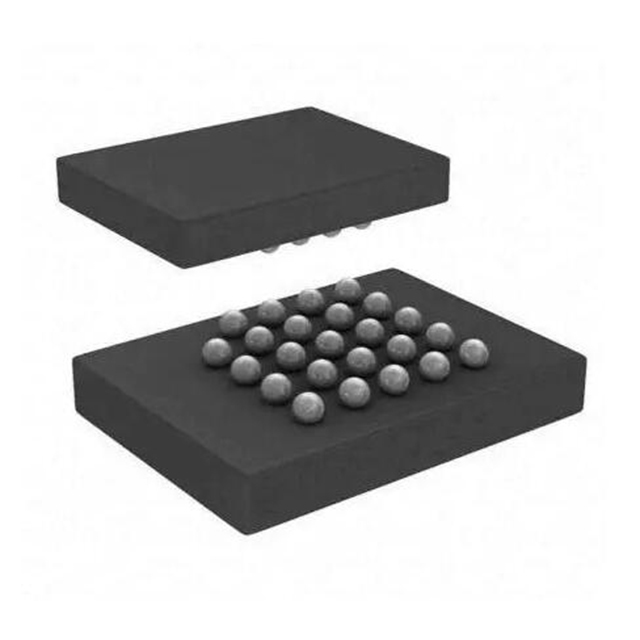

Package:24-FBGA
Delivery Date:New and Original
Stock: 1000pcs
S70KL1282GABHI020 is a high-speed CMOS, self-refresh DRAM, with HYPERBUS™ interface. The DRAM array uses dynamic cells that require periodic refresh. Refresh control logic within the device manages the refresh operations on the DRAM array when the memory is not being actively read or written by the HYPERBUS™ interface master (host).
Product Features
• Interface
- HYPERBUS™ interface
- 1.8 V / 3.0 V interface support
• Single-ended clock (CK) - 11 bus signals
• Optional differential clock (CK, CK#) - 12 bus signals
• Performance, power, and packages
- 200 MHz maximum clock rate
- DDR - transfers data on both edges of the clock
- Data throughput up to 400 MBps (3,200 Mbps)
- Configurable burst characteristics
• Hybrid option - one wrapped burst followed by linear burst on 64 Mb. Linear burst across die boundary is not supported.
- Configurable output drive strength
- Power modes[1]
• Hybrid sleep mode
• Deep power down
- Array refresh
• Partial memory array(1/8, 1/4, 1/2, and so on)
• Full memory array
- Package
• 24-ball FBGA
- Operating temperature range
• Industrial (I): –40°C to +85°C
• Industrial plus (V): –40°C to +105°C
• Automotive (A), AEC-Q100 grade 3: –40°C to +85°C
• Automotive (B), AEC-Q100 grade 2: –40°C to +105°C
• Technology
- 38-nm DRAM
Model
Brand
Package
Quantity
Describe
INFINEON
24-VBGA
2000
PSRAM (Pseudo SRAM) Memory IC 128Mbit SPI - Octal I/O 166 MHz 36 ns
INFINEON
24-VBGA
2000
PSRAM (Pseudo SRAM) Memory IC 128Mbit SPI - Octal I/O 166 MHz 36 ns
INFINEON
24-VBGA
2000
PSRAM (Pseudo SRAM) Memory IC 128Mbit HyperBus 166 MHz 36 ns
INFINEON
24-VBGA
2000
PSRAM (Pseudo SRAM) Memory IC 128Mbit HyperBus 166 MHz 36 ns
INFINEON
24-VBGA
2000
PSRAM (Pseudo SRAM) Memory IC 256Mbit HyperBus 200 MHz 35 ns
INFINEON
24-VBGA
2000
PSRAM (Pseudo SRAM) Memory IC 256Mbit HyperBus 200 MHz 35 ns
INFINEON
24-VBGA
2000
PSRAM (Pseudo SRAM) Memory IC 256Mbit HyperBus 200 MHz 35 ns
INFINEON
24-VBGA
2000
PSRAM (Pseudo SRAM) Memory IC 256Mbit SPI - Octal I/O 200 MHz 35 ns
INFINEON
49-FBGA
2000
PSRAM (Pseudo SRAM) Memory IC 256Mbit HyperBus 200 MHz 35 ns
INFINEON
49-FBGA
2000
PSRAM (Pseudo SRAM) Memory IC 256Mbit HyperBus 200 MHz 35 ns
