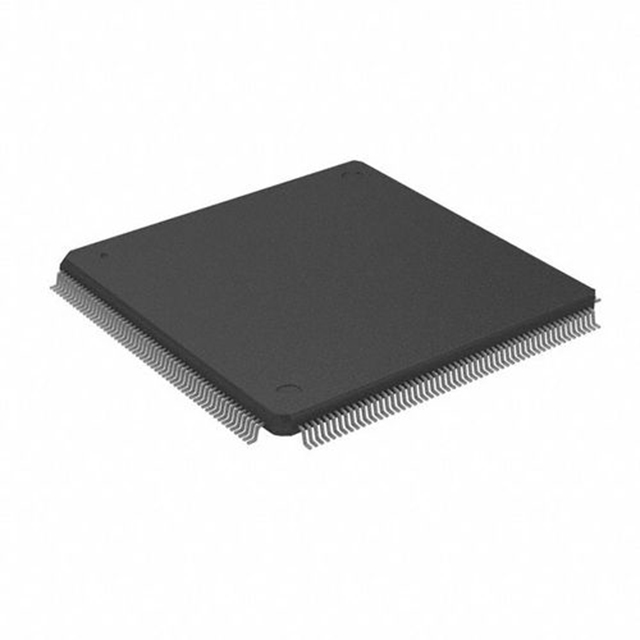

S6J32LELSMSC20000 features 32-bit RISC microcontrollers with an Arm® Cortex®- R5 core and operates up to 240 MHz.

Features

32-bit Arm Cortex-R5F CPU core at up to 240 MHz

GPIO port: Up to 120

12-bit A/D converter: Up to 50 channels

External interrupt: Up to 16 channels

Base timer: Up to 24 channels

32-bit free-run timer: Up to 12 channels

Built-in CR oscillators

Real-time clock

Input capture unit: Up to 24 channels

Output compare unit: Up to 24 channels

DMA controller: 16 channels

Stepper motor controller (SMC): Six units

JTAG debug interface

2D graphic engine

3D graphic engine (optional)

Timing generator - TCON TTL/RSDS

FPD-Link – LVDS (optional)

Video capture (optional)

Communication: Ethernet AVB MAC (optional)

CAN-FD: up to four channels

Multi-function serial interface：up to 12 channels, selectable protocol: UART, CSIO, LIN, and I2C

MediaLB: up to one channel (optional)

Cypress HyperBus Memory interface

Dual quad double data rate SPI Flash Interface

I2S input/output: Up to two units

PCM to PWM output unit

Sound mixer (optional): 1 unit x 10 inputs (optional)

Stereo audio DAC (optional)

Secure Hardware Extension

Safety features, such as MPU, TPU, ECC, and others

CRC generator: One channel

Watchdog timer with window function

Low-voltage detector

Clock supervisor for all source clocks
