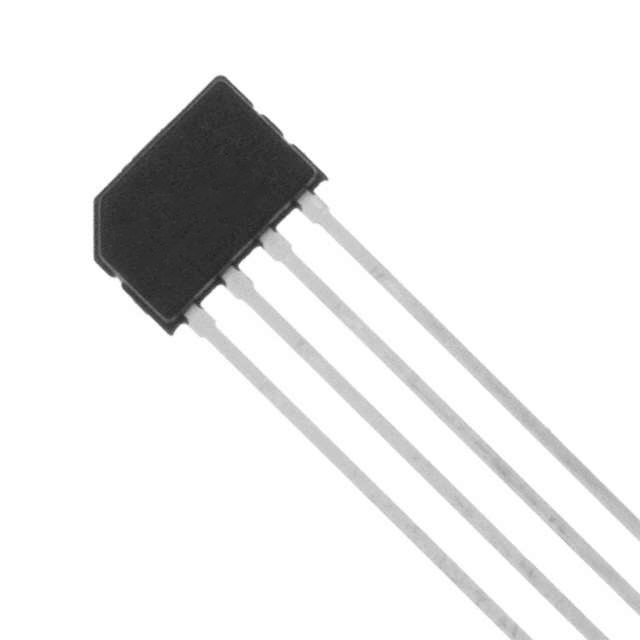

TLE4999C4S0001HALA1 is a dual channel linear Hall sensor with a bus-capable digital Short-PWM-Code (SPC) interface. Both channels are integrated on one die in the chip.

Features

Two highly accurate redundant Hall measurement channels (main and sub) integrated on one chip.

Developed compliant to ISO 26262 (first edition 2011) Safety Element out of Context for safety requirements rated up to ASIL C.

High diagnostic coverage by plausibility checking of main and sub signal on system level.

Fast digital SPC interface with min. 0.5µs unit time for transmission of main and sub signals in less than 500 µs.

Bus-capability for up to 4 sensor ICs on one data line.

Selectable 12/14/16bit output signals, protected by CRC and rolling counter.

Thin 4 pin leaded single sensor package.

Operating automotive temperature range -40°C to 150°C.

Digital temperature and stress compensation.

Reverse-polarity and over voltage protection for VDD, GND and OUT pins.

Main and sub channel programmable independently in EEPROM.

Multipoint calibration up to 9 points.

Frameholder mechanism.

Single-wire SICI programming interface on output pin.

2 x 16 bit user-configurable ID in EEPROM.

Applications

Robust replacement of potentiometers: No mechanical abrasion, resistant to humidity, temperature,pollution, and vibration.

Linear and angular position sensing in automotive and industrial applications with highest accuracy requirements.

Suited for safety applications such as pedal position, throttle position, and steering torque sensing.
