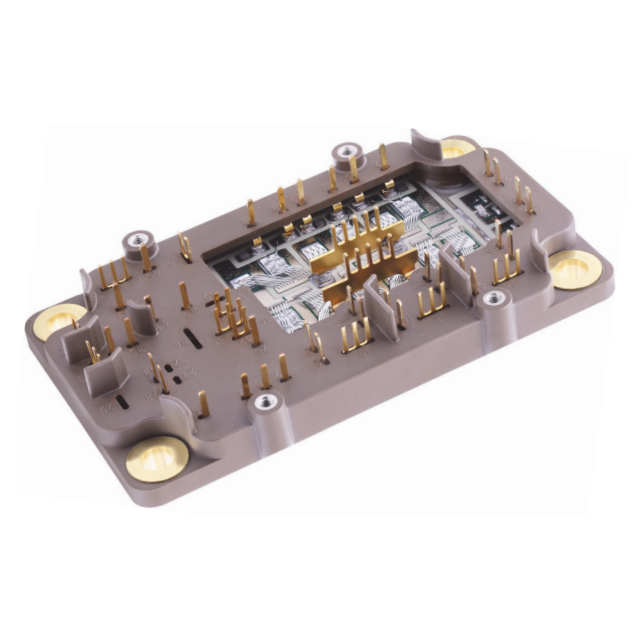

MSCGLQ75X120CTYZBNMG device is a three-phase bridge, brake, soft start, and solenoid power module.

Feature

Silicon Carbide (SiC) Schottky Diode

IGBT4

Low stray inductance

Lead frames for power connections

Si3N4 substrate for improved thermal performance

AlSiC base plate for extended reliability and reduced weight

Extended storage temperature range

Internal thermistor for temperature monitoring

Benefits

Stable temperature behavior

Very rugged

Solderable terminals for easy PCB mounting

Direct mounting to heatsink (isolated package)

Low junction-to-case thermal resistance

RoHS Compliant

Applications

Hybrid Power Device (HPD) for Electro-Mechanical Actuator (EMA) and Electro-Hydrostatic Actuator (EHA)systems

High reliability Power Core Module (PCM)

Modular power module for Power Drive Electronic (PDE)
