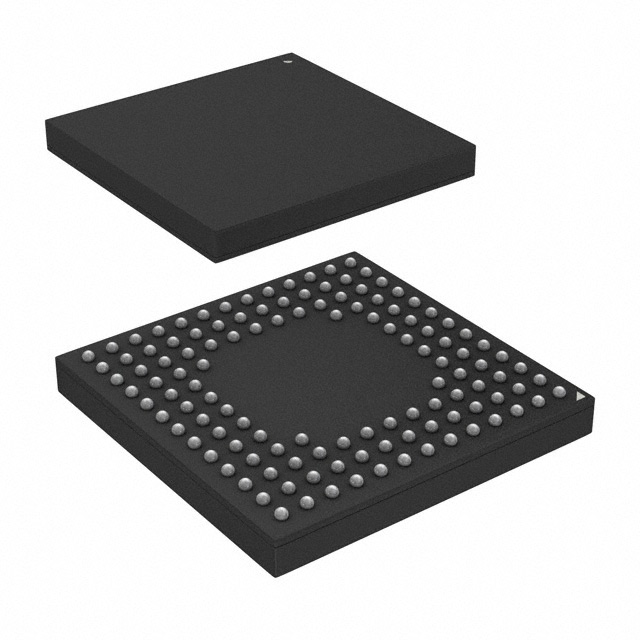

CY8C6248BZI-S2D44 is a high-performance, ultra-low-power and secured MCU platform, purpose-built for IoT applications.

CY8C6248BZI-S2D44 product line, based on the PSoC 6 MCU platform, is a combination of a dual CPU microcontroller with low-power flash technology,digital programmable logic, high-performance analog-to-digital conversion and standard communication and timing peripherals.

Feature

Six power modes for fine-grained power management

Deep Sleep mode current of 7 µA with 64-KB SRAM retention

On-chip DC-DC buck converter, <1 µA quiescent current

Backup domain with 64 bytes of memory and real-time clock

8-MHz internal main oscillator (IMO) with ±2% accuracy

Ultra-low-power 32-kHz internal low-speed oscillator (ILO)

On-chip crystal oscillators (16 to 35 MHz, and 32 kHz)

Two phase-locked loops (PLLs) for multiplying clock frequencies

Frequency-locked loop (FLL) for multiplying IMO frequency

Integer and fractional peripheral clock dividers

Execute-In-Place (XIP) from external quad SPI flash

On-the-fly encryption and decryption

4-KB cache for greater XIP performance with lower power

Supports single, dual, quad, dual-quad, and octal interfaces with throughput up to 640 Mbps

Supports up to 101 segments and up to 8 commons

USB Full-Speed device interface

Two independent SD Host Controller/eMMC/SD controllers

Thirty-two timer/counter/pulse-width modulators (TCPWMs)

Center-aligned, edge, and pseudo-random modes

Comparator-based triggering of kill signals

Two low-power comparators available in system Deep Sleep and Hibernate modes

Built-in temperature sensor connected to ADC

Programmable drive modes, strengths, and slew rates

Six overvoltage-tolerant (OVT) pins
