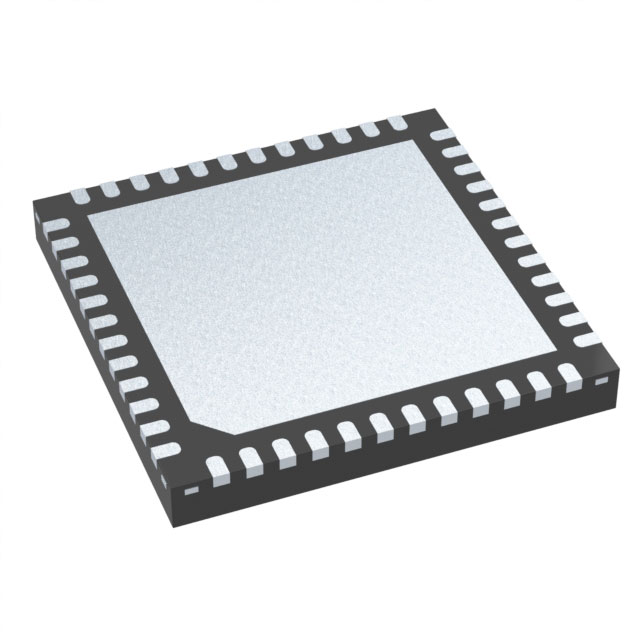

CY8C6245LQI-S3D62 is a high-performance, ultra-low-power and secured MCU platform, purpose-built for IoT applications. Based on the PSoC 6 MCU platform, this product line is a combination of a dual CPU microcontroller with low-power flash technology, digital programmable logic, high-performance analog-to-digital conversion and standard communication and timing peripherals.

Feature

Six power modes for fine-grained power management

Deep Sleep mode current of 7 µA with 64-KB SRAM retention

On-chip DC-DC buck converter, <1 µA quiescent current

Backup domain with 64 bytes of memory and real-time clock

8-MHz internal main oscillator (IMO) with ±2% accuracy

Ultra-low-power 32-kHz internal low-speed oscillator (ILO)

On-chip crystal oscillators (16 to 35 MHz, and 32 kHz)

Phase-locked loop (PLL) for multiplying clock frequencies

Frequency-locked loop (FLL) for multiplying IMO frequency

Integer and fractional peripheral clock dividers

Execute-In-Place (XIP) from external quad SPI flash

On-the-fly encryption and decryption

4-KB cache for greater XIP performance with lower power

Supports single, dual, and quad interfaces with throughput up to 320 Mbps

Supports up to 63 segments and up to 8 commons.

Operates in system Deep Sleep mode

USB Full-Speed device interface

One SD Host Controller/eMMC/SD controller

One CAN FD block

Twelve timer/counter/pulse-width modulators (TCPWMs)

Center-aligned, edge, and pseudo-random modes

Comparator-based triggering of kill signals

ROM-based root of trust via uninterruptible “Secure Boot”

Authentication during boot using hardware hashing

Step-wise authentication of execution images

Secured execution of code in execute-only mode for protected routines

All debug and test ingress paths can be disabled

Up to eight protection contexts
