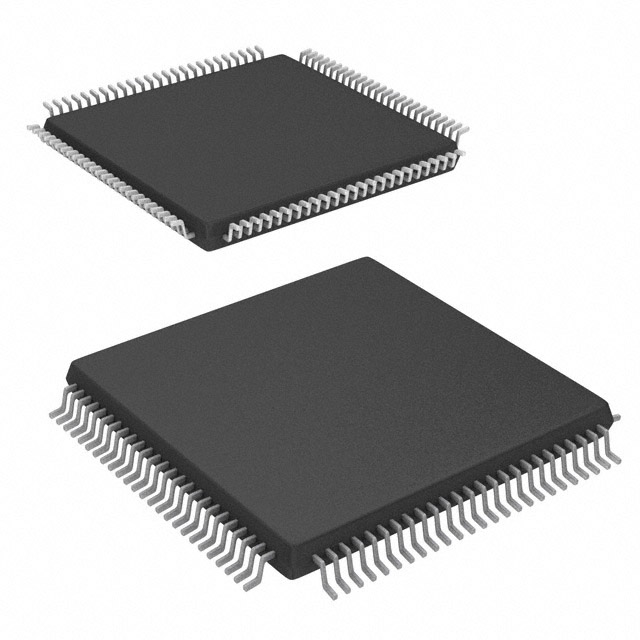

The CY8C4149AZQ-S558 PSoC™ 4 is a scalable, reconfigurable platform architecture for a family of programmable embedded system controllers with Arm® Cortex®-M0+ CPUs.

Product Attributes

Family: PSOC® 4 CY8C4100S

Core processor: ARM® Cortex®-M0+

Core specification: 32-bit

Speed: 48MHz

Connectivity: FIFO, I²C, IrDA, LINbus, Microwire, Smart Card, SPI, SSP, UART/USART

Peripherals: Power Down Detect/Reset, CapSense, Crypto - AES, DMA, LCD, POR, PWM, SHA, Temperature Sensor, TRNG, WDT

Number of I/O: 84

Program Memory Capacity: 384KB (384K x 8)

Program Memory Type: Flash

RAM Size: 32K x 8

Voltage - Supply (Vcc/Vdd): 1.71V ~ 5.5V

Data Converter: A/D 16x12b SAR

Oscillator Type: External, Internal

Operating Temperature: -40°C ~ 105°C (TA)

Mounting Type: Surface Mount

Package/Housing : 100-LQFP

Supplier Device Package : 100-TQFP (14x14)
