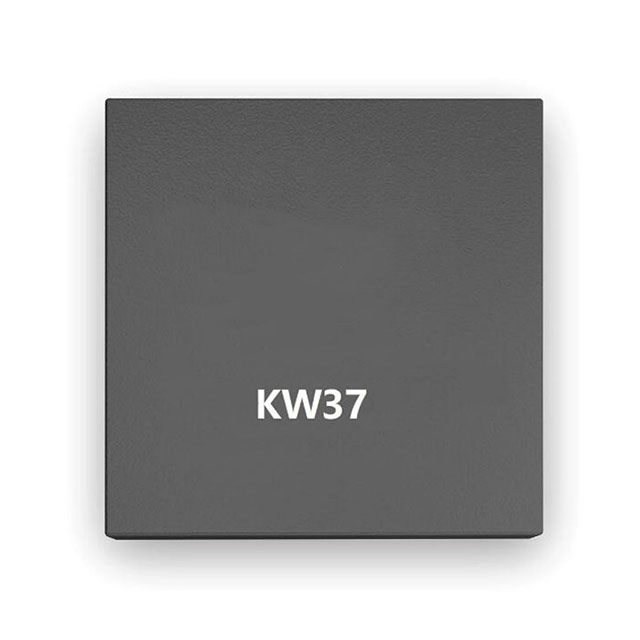

MKW37A512VFT4R is an ultra low-power, highly integrated Bluetooth® Low Energy 5.0 wireless microcontroller.

Product Features

Typical Bluetooth LE Receiver Sensitivity

Bluetooth LE 2 Mbit/s: –95.5 dBm

Bluetooth LE 1 Mbit/s: –98 dBm

Bluetooth LE LR 500 kbit/s: –101 dBm

Bluetooth LE LR 125 kbit/s: –105 dBm

Generic FSK modulation

Data Rate: 250, 500, 1000 and 2000 kbit/s

Modulations: GFSK BT = 0.5, MSK

Programmable Transmitter Output Power: –30 dBm to +5 dBm

Low external component count for low-cost application

On-chip balun with single ended bidirectional RF port

16-bit Low-power Timer (LPTMR)

3 Timer/PWM Modules(TPM): One 4 channel TPM and two 2 channel TPMs

Programmable Interrupt Timer (PIT)

Real-Time Clock (RTC)

16-bit Analog-to-Digital Converter (ADC)

6-bit High-Speed Analog Comparator (CMP)

1.2 V Voltage Reference (VREF)

On-chip 64 KB SRAM

Up to 48 MHz Arm® Cortex®-M0+ core

Voltage range: 1.71 V to 3.6 V

Ambient temperature range: –40 to 105 °C

AEC Q100 Grade 2 Automotive Qualification

Industrial Qualification
