The IPL60R065P7 follows the successful CoolMOS™P6 series. It combines the benefits of a fast switching SJMOSFET with excellent ease of use, such as extremely low ringing transients. In addition, the extremely low switching frequency and very high stability are also advantages of the device, and the extremely low switching and conduction losses make switching applications more efficient, compact and low temperature.The CoolMOS™ 7th generation platform is a revolutionary technology for high voltage power MOSFETs, designed on the (SJ) principle and pioneered by Infineon Technologies.

Product Properties

FET Type: N-Channel

Technology: MOSFET (Metal Oxide)

Drain-source voltage (Vdss): 600 V

Current at 25°C - continuous drain (Id): 41 A (Tc)

Drive Voltage (Max Rds On, Min Rds On): 10V

On Resistance (Max) at Different Id, Vgs: 65 mOhm @ 15.9A, 10V

Vgs(th) at different Id (max): 4V @ 800µA

Gate Charge (Qg) (max) at varying Vgs: 67 nC @ 10 V

Vgs (max): ±20V

Input capacitance (Ciss) at varying Vds (max): 2895 pF @ 400 V

Power Dissipation (Max): 201W (Tc)

Operating Temperature: -40°C ~ 150°C (TJ)

Mounting Type: Surface Mount

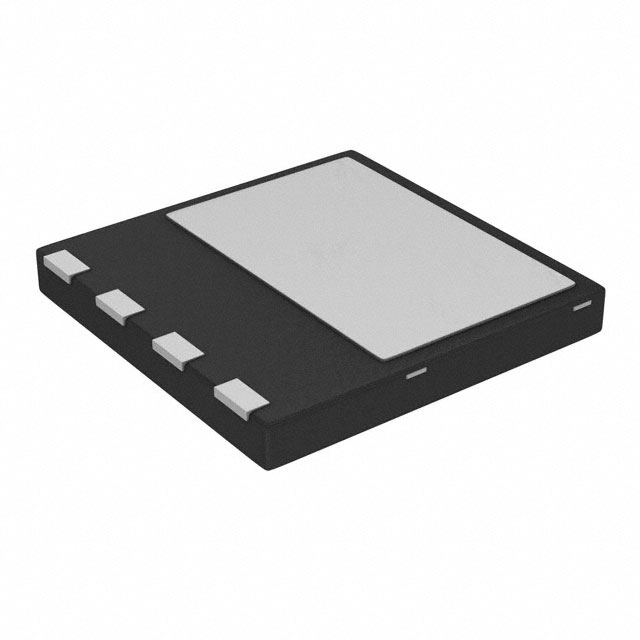

Supplier Device Package: PG-VSON-4

Package/Housing: 4-PowerTSFN

Applications

● PCSilverbox

● Adapters

● LCD&PDPTV

● Lighting

● Servers

● Telecommunications

● UPS
