The IPP65R090CFD7 extends the voltage ratings offered by the CFD7 family and is a successful alternative to the 650VCoolMOS™CFD2. The 650VCooMOS™CFD7 family offers improved switching performance and excellent thermal performance, with the highest efficiencies in resonant switching topologies, such as LLCs and phase-shifted full (ZVS). As part of Infineon's fast body diode portfolio, this new product family combines all the benefits of fast switching with improved hard commutation robustness. coolMOS™CFD7 technology meets the highest efficiency and reliability standards and further supports high power density solutions.

Product Attributes

FET Type: N-Channel

Technology: MOSFET (Metal Oxide)

Drain-Source Voltage (Vdss): 650 V

Current at 25°C - Continuous Drain (Id): 25A (Tc)

Drive Voltage (Max Rds On, Min Rds On): 10V

On Resistance (Max) at Different Id, Vgs: 90 milliohms @ 12.5A, 10V

Vgs(th) at different Id (max): 4.5V @ 630µA

Gate Charge (Qg) (max) at varying Vgs: 53 nC @ 10 V

Vgs (max): ±20V

Input capacitance (Ciss) at varying Vds (max): 2513 pF @ 400 V

Power Dissipation (Max): 127W (Tc)

Operating Temperature: -55°C ~ 150°C (TJ)

Mounting Type: Through Hole

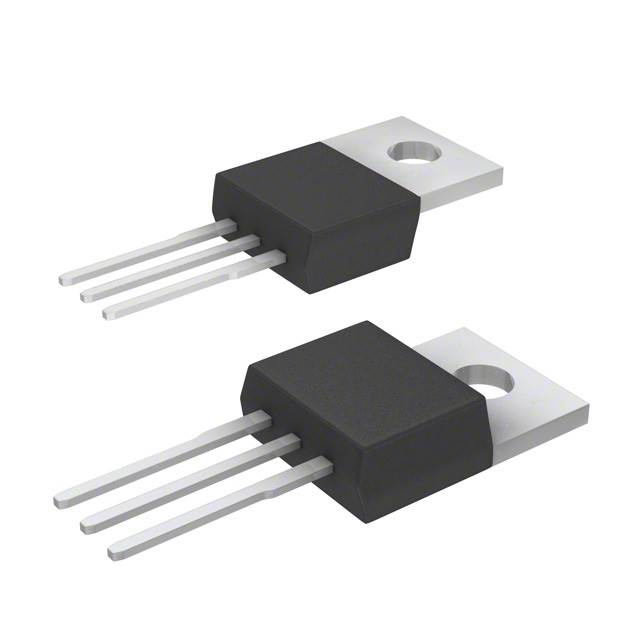

Supplier Device Package: PG-TO220-3

Package/Housing: TO-220-3

Applications

● Electric vehicle fast charging

● Cellular communication infrastructure

● Server power supplies

● Solar system solutions
