The IPT044N15N5 is designed to meet the need for increased system efficiency while reducing system cost. These devices have lower RDS(on) and quality factor (RDS(on) x Qg) than other alternatives. Using new silicon technology, they are optimised to meet and exceed energy efficiency and power density requirements. Typical applications for these MOSFETs include server, datacom and client applications in computing.

Product Attributes

FET Type: N-Channel

Technology: MOSFET (Metal Oxide)

Drain-Source Voltage (Vdss): 150 V

Current at 25°C - Continuous Drain (Id): 174A (Tc)

Drive Voltage (Max Rds On, Min Rds On): 8V, 10V

On Resistance (Max) at Different Id, Vgs: 4.4 milliohms @ 50A, 10V

Vgs(th) at different Id (max): 4.6V @ 221µA

Gate Charge (Qg) (max) at varying Vgs: 84 nC @ 10 V

Vgs (max): ±20V

Input capacitance (Ciss) at varying Vds (max): 6500 pF @ 75 V

Power Dissipation (Max): 300W (Tc)

Operating Temperature: -55°C ~ 175°C (TJ)

Mounting Type: Surface Mount

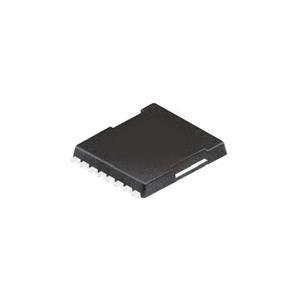

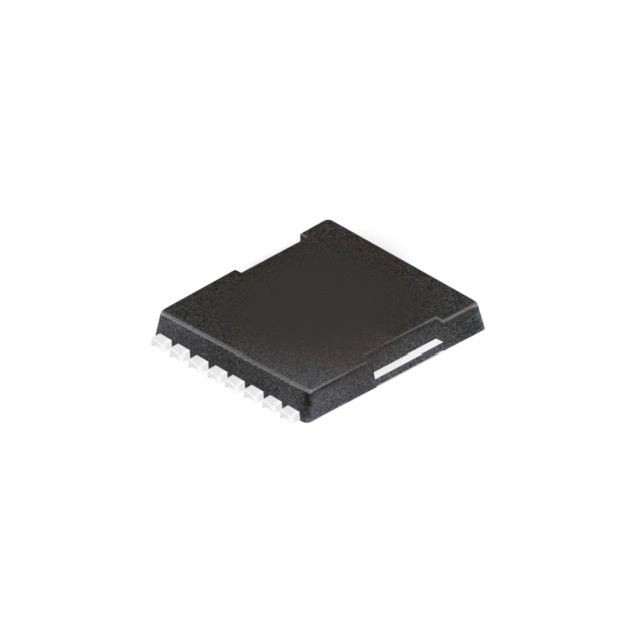

Supplier Device Package: PG-HSOF-8

Package/Housing: 8-PowerSFN

Applications

● Desktop and serverr

● Single-phase and multi-phase PoLs

● CPU/GPU voltage regulation in notebook computers

● High power density voltage regulators

● O-rings

● Electronic fuses
