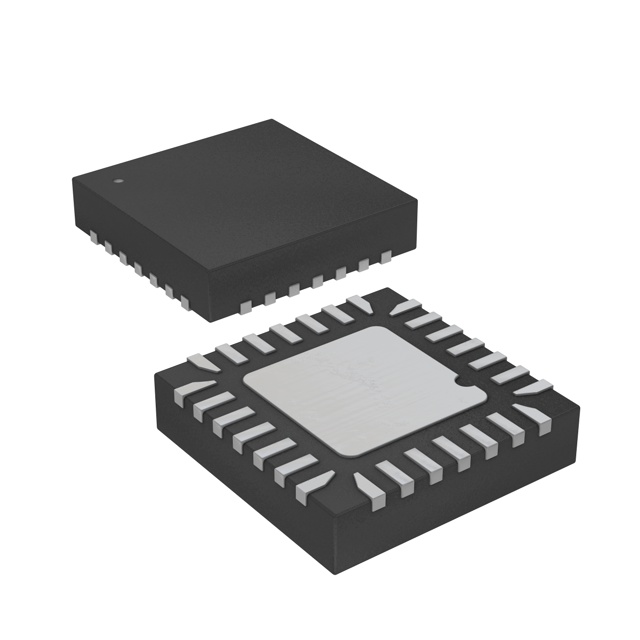

PIC16F18054T-I/STX is Full-Featured, 8-Bit Microcontroller IC, it includes a 10-bit Analog-to-Digital Converter with Computation (ADCC), automated Capacitive Voltage Divider (CVD) techniques for advanced capacitive touch sensing, an 8-bit Digital-to-Analog Converter (DAC) module, and many more waveform control and communication peripherals.

PIC16F18054T-I/STX has a suite of digital and analog peripherals that enable cost-sensitive sensor and real-time control applications. It is available from 8 to 44-pin packages in a memory range of 3.5 KB to 28 KB, with speeds up to 32 MHz.

Product Features

Up to 28 KB of Program Flash Memory

Up to 2 KB of Data SRAM Memory

Up to 256 Bytes of Data EEPROM Memory

Operating Voltage Range: 1.8V to 5.5V

Two Capture/Compare/PWM (CCP) Modules:

– 16-bit resolution for Capture/Compare modes

– 10-bit resolution for Pulse-Width Modulator (PWM) mode

One Configurable 8/16-Bit Timer (TMR0)

Two 16-Bit Timers (TMR1/3) with Gate Control

Three 8-Bit Timers (TMR2/4/6) with Hardware Limit Timer (HLT)

High-Precision Internal Oscillator Block (HFINTOSC):

– Selectable frequencies up to 32 MHz

– ±2% at calibration

Internal 31 kHz Oscillator (LFINTOSC)

External High-Frequency Clock Input: Two External Clock (EC) Power modes

Temperature Range:

– Industrial: -40°C to 85°C

– Extended: -40°C to 125°C

One Numerically Controlled Oscillator (NCO):

– Generates true linear frequency control and increased frequency resolution

– Input clock up to 64 MHz
