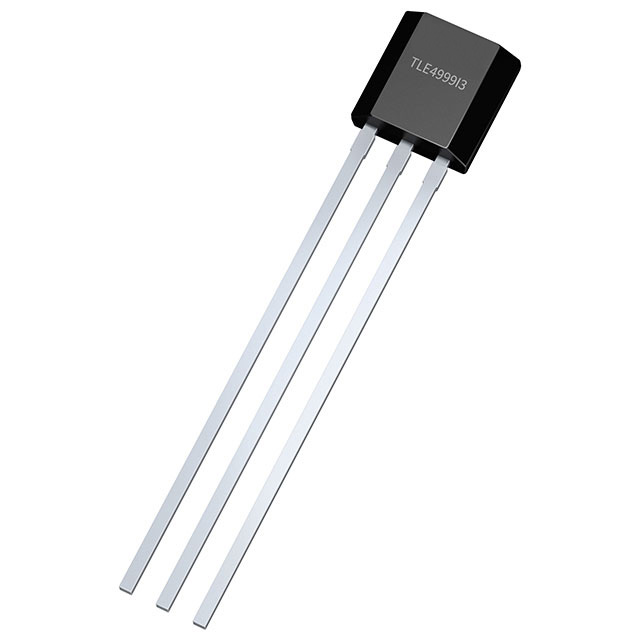

TLE4999I3XALA1 is Programmable Dual Channel Linear Hall Sensor with PSI5 Interface.

Product Attributes

Technology: Hall Effect

Axis: Single

Sensing Range: ±25mT

Voltage - Supply: 5.5V ~ 7V

Current - Supply (Max): 14mA

Current - Output (Max): 30mA

Resolution: 13 b

Operating Temperature: -40°C ~ 150°C (TJ)

Features: Programmable, Temperature Compensated

Supplier Device Package: PG-SSO-3-12

Mounting Type: Through Hole

Package / Case: 3-SSIP Module

Product Features

Two highly accurate redundant Hall measurement channels (main and sub) integrated on one chip.

Developed compliant to ISO26262 for safety requirements rated up to ASIL D.

PSI5 v2.1-compatible interface in synchronous mode with high speed P10P-400/4H protocol.

Bi-directional interface for programming via fast SICI interface.

13bit output signals, protected by CRC and rolling counters.

Digital temperature and stress compensation.

3-pin leaded package for mounting in PCB-less modules.

Operating junction temperature range -40°C to 150°C.

Main and sub channel programmable independently in EEPROM.

16bit user-configurable ID in EEPROM.

Supply voltage 5.5 to 7 V.
