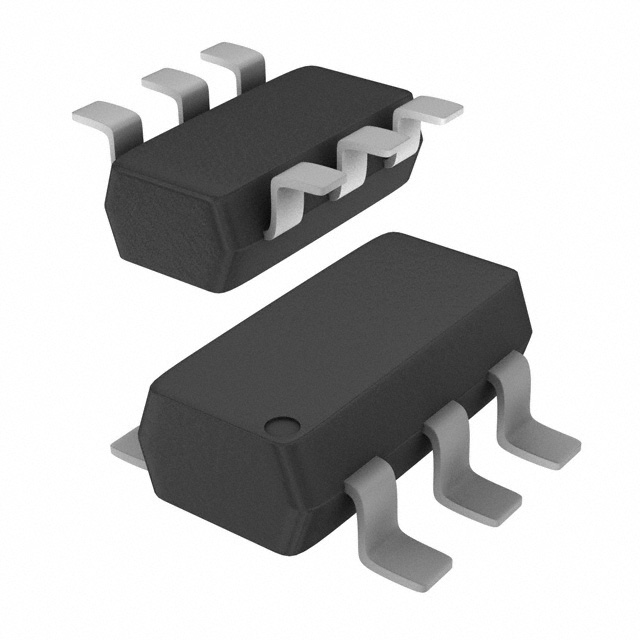

TLE493DP2B6A1HTSA1 is High Accuracy Low Power 3D Hall Sensor with I2C Interface.

Features

3D (X, Y, Z) magnetic flux density sensing of ±160 mT

Programmable flux resolution down to 65 µT

X-Y angular measurement mode

Diagnostic measurements to check digital parts, analog parts and Hall probe of the sensor

Wake Up function and Power down mode with 7 nA power consumption

12-bit data resolution for each measurement direction plus 10-bit temperature sensor

Variable update frequencies and power modes (configurable during operation)

Triggering by external µC possible via I2C protocol

Interrupt signal to indicate a valid measurement to the microcontroller

Benefits

Component reduction due to 3D magnetic measurement principle

Wide application range addressable due to high flexibility

Platform adaptability due to device configurability

Supporting functional safety by means of integrated diagnostics

Very low system power consumption due to Wake-Up mode resulting in extended battery runtime

Disturbance of smaller stray fields are neglectable compared to the high magnetic flux measurement range

Applications

Gear stick position

Control elements in the top column module and multi function steering wheel

Multi function knobs

Pedal/valve position sensing
