Service Telephone:86-755-83294757

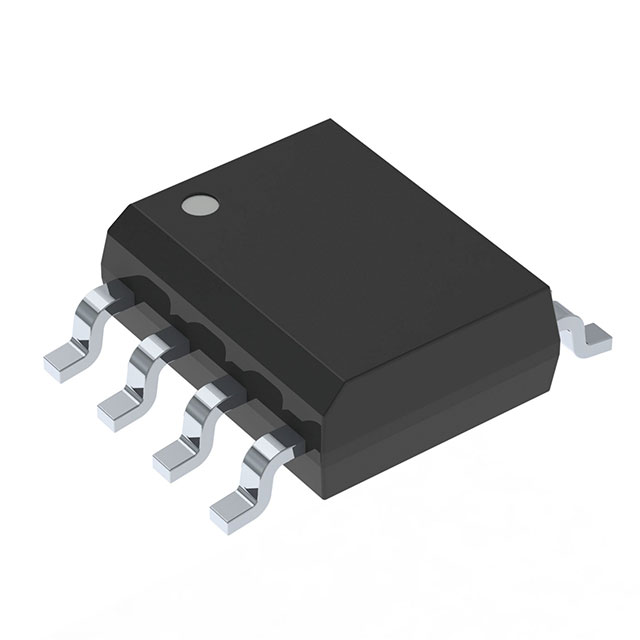

Trade Name:TLE4999C8XUMA1
Data Manual:TLE4999C8XUMA1.pdf
Brand:INFINEON
Particular Year:23+
Package:8-SOIC
Delivery Date:New original
Stock: 1000pcs
TLE4999C8XUMA1 is a dual channel linear Hall sensor with a bus-capable digital Short-PWM-Code interface.
Features
Two highly accurate redundant Hall measurement channels (main and sub) integrated on one chip.
Developed compliant to ISO 26262 ( first edition 2011) Safety Element out of Context for safety requirements rated up to ASIL D.
High diagnostic coverage by plausibility checking of main and sub signal on system level.
Fast digital SPC interface with min. 0.5µs unit time for transmission of main and sub signals in less than 500 µs.
Bus-capability for up to 4 sensor ICs on one data line.
Selectable 12/14/16bit output signals, protected by CRC and rolling counter.
Thin 8-pin SMD single sensor package.
Operating automotive temperature range -40°C to 125°C.
Digital temperature and stress compensation.
Reverse-polarity and over voltage protection for VDD, GND and OUT pins.
Main and sub channel programmable independently in EEPROM.
Multipoint calibration up to 9 points.
Frameholder mechanism.
Single-wire SICI programming interface on output pin.
2 x 16 bit user-configurable ID in EEPROM.
Applications
Robust replacement of potentiometers: No mechanical abrasion, resistant to humidity, temperature,pollution, and vibration.
Linear and angular position sensing in automotive and industrial applications with highest accuracy requirements.
Suited for safety applications such as pedal position, throttle position, and steering torque sensing.
Model
Brand
Package
Quantity
Describe
INFINEON
PG-TDSO-8
1000
Linear Hall sensor with digital temperature and stress compensation
