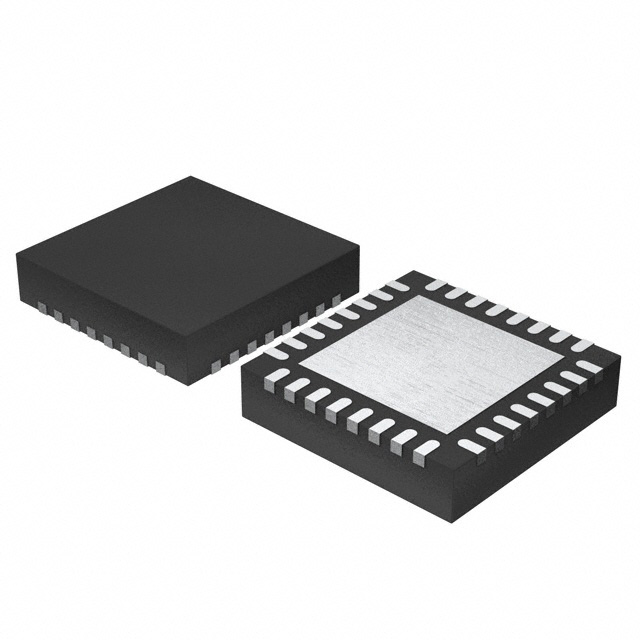

ST25R3914-AQWT is highly integrated NFC initiators / HF reader ICs for automotive applications. ST25R3914-AQWT include several features that make them very suited for low power applications. They contain a low power capacitive sensor that can be used to detect the presence of a card without switching on the reader field.

Features

AEC-Q100 qualified

Support HBR up to 848 kbit/s PICC to PCD and PCD to PICC framing

Capacitive sensing - Wake-up

Automatic antenna tuning system providing tuning of antenna LC tank

Automatic modulation index adjustment

AM and PM (I/Q) demodulator channels with automatic selection

Up to 1 W in case of differential output

User selectable and automatic gain control

Transparent and Stream modes to implement MIFARE™ Classic compliant or other custom protocols

Possibility of driving two antennas in single ended mode

Oscillator input capable of operating with 13.56 MHz or 27.12 MHz crystal with fast start-up

6 Mbit/s SPI with 96 bytes FIFO

Wide supply voltage range from 2.4 V to 5.5 V

Wide temperature range: -40 °C to 125 °C

• 1.Is the inventory and price seen on the platform accurate?

  A: all online goods on the shelves can be ordered online, but considering the large liquidity of spot inventory, it is not possible to achieve 100% accuracy at present. In case of any abnormality, you can contact our company online and give the corresponding solution.

• 2.Are all our products genuine?

  A: our self-supporting products are from cooperative domestic and foreign original factories or authorized agents, and the source can be traced to ensure the original and authentic products.

• 3.Can you provide the qualification certificate of the original factory or agent?

  A: at present, our self-employed brands TI，ST，ADI，NXP，LATTICE，CYPRESS，INFINEON，XILINX and other first-line brands. Other channels are the original factory and agency channels. If necessary, we can communicate and confirm according to the specific brand and model.

• 4.Can I make an inquiry through the company's website?

  A: You can inquire through the website, or by phone and email.

• 5.When can I deliver the goods after placing an order? How long will it take to get there?

  A: the delivery date is marked in most commodity information. You can estimate the delivery time of the commodity according to the delivery date. The specific arrival time depends on the warehouse where the commodity is located and the logistics mode you choose.

• 6.Can the company issue an invoice?

  A: you can issue ordinary invoices for individual users or special VAT invoices for enterprise users.
