Trade Name:STM32WL55UCY7
Data Manual:STM32WL55UCY7.pdf
Brand:ST
Particular Year:23+

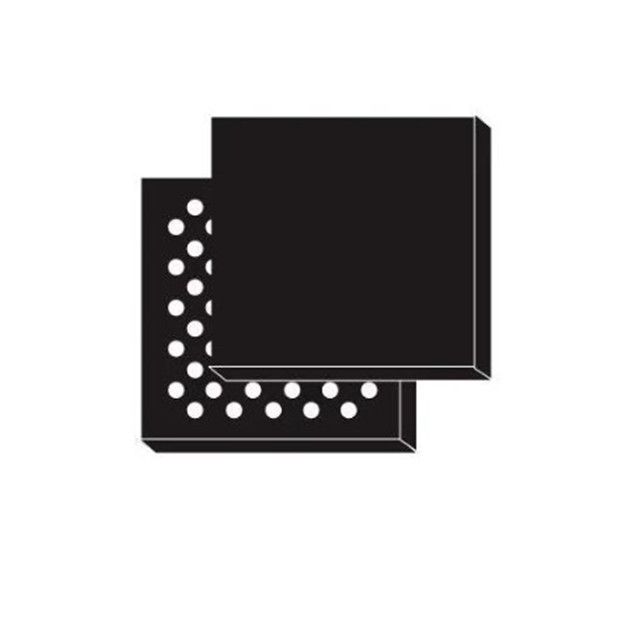

Package:59-WLCSP
Delivery Date:New original
Stock: 1000pcs
The STM32WL55UCY7 Wireless Remote MCU has a powerful, ultra-low power radio compatible LPWAN solution that supports the following modulations: (G) FSK, (G) MSK and BPSK. The device is designed with ultra-low power consumption and is based on a high-performance ARM® Cortex-M4 32-bit RISC core operating at frequencies up to 48 MHz. The kernel implements a complete DSP instruction set. It is complemented by an ARM®Cortex®-M0+ microcontroller. Both cores implement independent memory protection units (MPUs) to enhance application security.
Product Attributes:
Type: TxRx + MCU
Rf series/standards: General ISM < 1GHz
Protocol: LoRaWAN 1.0, Sigfox, Wireless M-Bus
Modulation: BPSK, FSK, GFSK, GMSK, MSK
Frequency: 150MHz ~ 960MHz
Data rate (Max.) : 300kbps
Power - Output: 22dBm
Sensitivity: -148dBm
Storage capacity: 256kB flash memory, 64kB SRAM
Serial interface: ADC, GPIO, I²C, I²S, IrDA, JTAG, PWM, SPI, UART, USART
GPIO: 29
Voltage - Power supply: 1.8V ~ 3.6V
Current - Reception: 4.47mA ~ 10.22mA
Current - transmission: 21mA ~ 120mA
Operating temperature: -40°C ~ 105°C (TA)
Mounting type: Surface mount type
Package/housing: 59-BGA, WLCSP
Supplier device package: 59-WLCSP
