The STM32WB55REV7 wireless MCU is based on a high-performance Arm® Cortex-M4 32-bit RISC core (operating up to 32MHz) and is designed to achieve ultra-low power consumption. The STM32WB55xx multi-protocol wireless and ultra-low power device incorporates a powerful ultra-low power radio module (compliant with Bluetooth ® Low Power SIG Specification 5.0 and IEEE 802.15.4-2011 standard). The device includes a dedicated Arm® Cortex® -M0+ for performing all of the underlying real-time operations.

Product Specifications:

Type: TxRx + MCU

Rf series/Standard: 802.15.4, Bluetooth

Protocol: Bluetooth v5.3, Thread, Zigbee®

Modulation: GFSK

Frequency: 2.405GHz ~ 2.48GHz

Data rate (Max.) : 2Mbps

Power - output: 6dBm

Sensitivity: -100dBm

Storage capacity: 512kB flash, 256kB SRAM

Serial interface: ADC, I²C, SPI, UART, USART, USB

GPIO: 49

Voltage - Power supply: 1.71V ~ 3.6V

Current - Reception: 4.5mA ~ 7.9mA

Current-transmission: 5.2mA ~ 12.7mA

Operating temperature: -40°C ~ 105°C (TA)

Mounting type: Surface mount type

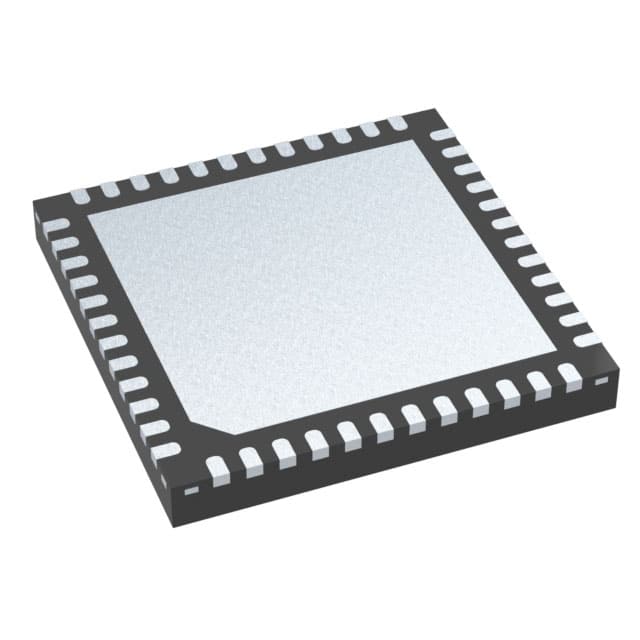

Package/housing: 68-VFQFN bare pad

Supplier Package: 68-VFQFPN (8x8)
