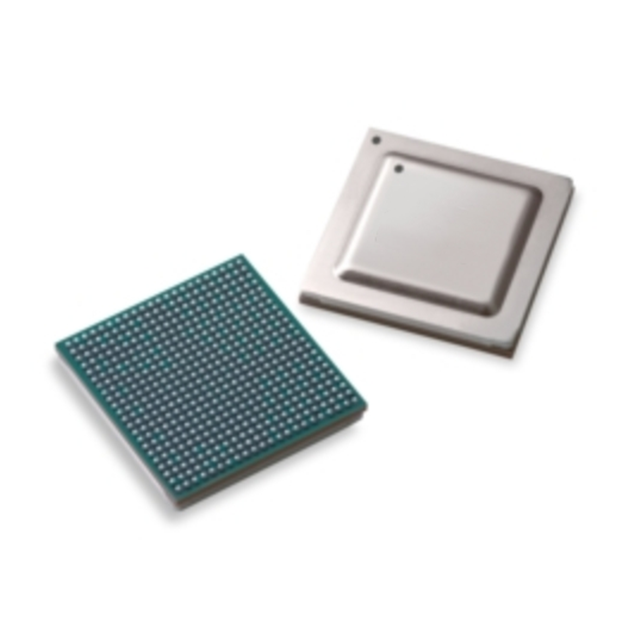

For picture reference, please see the specifications
< >

Commodity Model:98DX336SA1-BXH4C000

Trade Name:Network Processors

Brand:Marvell

Particular Year:25+

Package:BGA

Delivery Date:New and original

Stock: 1000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Marvell
Model
98DX336SA1-BXH4C000
Package
BGA
Describe
Next-generation packet processors for SMB/SME access switching applications

Product Description

The 98DX336SA1-BXH4C000 is a new generation of highly integrated, high-performance and low-power packet processor, which can achieve intelligent switching, security and performance at the access/edge of next-generation networks.


The system based on Marvell Prestera DX3300 provides feature-rich and secure GbE and 10GbE access network platforms for campus, industrial and operator networks. The 98DX336SA1-BXH4C000 device is equipped with a dual-core on-chip ARM CPU, capable of meeting demanding but cost-sensitive performance requirements by supporting host management and embedding additional value-added security or monitoring applications. The native integration of the PHY supports direct copper or fiber 10GbE network connections, as well as multi-system stacking. Support for the IEEE 802.1BR tunnel solution supports centralized management architecture and port extender deployment model.


The 98DX336SA1-BXH4C000 supports a total bandwidth of up to 84Gbps and offers 10G/20G ports for uplink, stacking or cascading. It is possible to cascade two devices to build a non-blocking switch system with 48 GbE, 4 10GbE, or 48 GbE, 2 10GbE, 2 20GbE.


Product features and advantages

• Integrated dual-core ARM v7 CPU

• Host processing

• Value-added functions

-OAM, PTP, PoE, DPI offloading, etc.

• Supports CarrierSpan®

• Flexible L2 and L3 tunneling functions

- Suitable for operator Ethernet and industrial applications

• Port extender function

• Bridge port expansion function in compliance with the 802.1BR standard

- Ability to scale and extend ports on centrally managed switches

• Integrated PHY

• Uplink/stacked port support based on SFP (10G)/QSFP

- Achieve a simpler design with fewer devices

• 20G stacked/cascaded ports

• Provides up to two 20G stacked ports or 40G cascaded bandwidth

-High-bandwidth stacked ports with QSFP

- Non-blocking 48-port design, featuring 10G/20G uplink ports

• Small footprint and low power consumption

• Reduce system cost through optimized PCB and system design

-21mm x 21mm package provides a smaller PCB package

- No heat sink and fanless design for optimal system cost


Application scenarios

The 98DX336SA1-BXH4C000 is specifically built for access solutions in operator Ethernet, campus, industrial, and small and medium-sized business (SMB/SME) applications. Its integrated business processor is highly suitable for security, OAM and value-added applications to achieve next-generation services that go beyond traditional L2 and L3 forwarding.
