The R7F7016523ABG-C is a single-chip microcontroller in the RH850/F1x family, designed for automotive electric body applications. This device not only has low power consumption, but also has an internal flash memory range of 3MB and supports a 272-FBGA pin package. In addition, R7F7016523ABG-C has added CAN FD and Ethernet interfaces, as well as a hardware security module, with a CPU operating frequency as high as 240MHz.

Main specifications

Core processor: RH850G3KH

Kernel specification: 32-bit

Speed: 240MHz

Connection capabilities: CANbus, CSI, I2C, LINbus, UART/USART

Peripheral devices: DMA, LVD, PWM, WDT

I/O number: 214

Program storage capacity: 3MB (3M x 8)

Program memory type: Flash memory

EEPROM capacity: 128K x 8

RAM size: 384K x 8

Voltage - Power supply (Vcc/Vdd) : 3V to 5.5V

Data converter: A/D 20x10b, 16x12b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

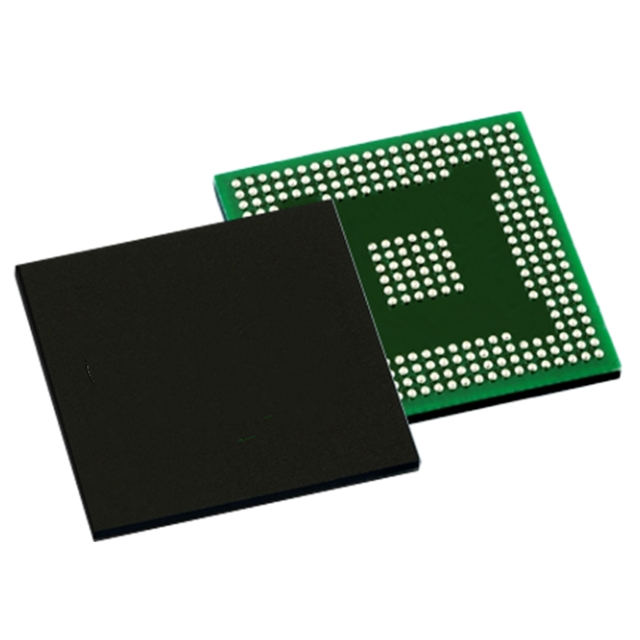

Package: 272-FBGA (17x17)

Application scenarios

The R7F7016523ABG-C is equipped with a built-in hardware safety module (HSM), which can meet the requirements of automotive safety standards such as ISO 26262. This chip is specifically designed for vehicle body control systems and can meet the strict requirements of automotive electronic components for high reliability and low power consumption, such as in scenarios like motor control and sensor data processing.
