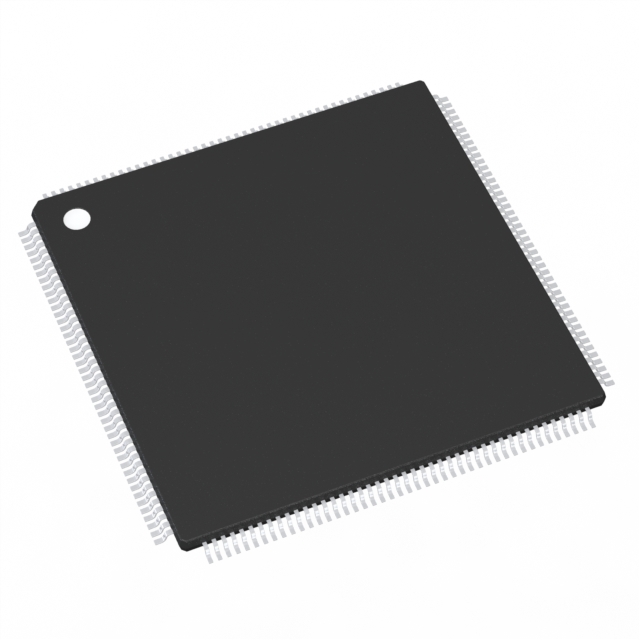

For picture reference, please see the specifications
< >

Commodity Model:R7F7010543AFP

Trade Name:Automotive Microcontrollers

Brand:Renesas

Particular Year:25+

Package:LFQFP144

Delivery Date:New and original

Stock: 2000pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Renesas
Model
R7F7010543AFP
Package
LFQFP144
Describe
RH850/F1L series - 96MHz, high-end automotive microcontrollers suitable for body applications

Product Description

The R7F7010543AFP microcontroller is a high-end in-vehicle microcomputer launched by Renesas. It is a product in the RH850/F1L series and is specifically designed for automotive body applications. This MCU adopts a 32-bit RH850G3K CPU core and is equipped with a rich array of peripheral interfaces, capable of meeting the demands of various complex applications.


Main specifications

Core processor: RH850G3K

Kernel specification: 32-bit

Speed: 96MHz

Connection capabilities: CANbus, CSI, I2C, LINbus, SPI, UART/USART

Peripheral devices: DMA, LVD, POR, PWM, WDT

I/O count: 120

Program storage capacity: 1.5MB (1.5M x 8)

Program memory type: Flash memory

EEPROM capacity: 64K x 8

RAM size: 160K x 8

Voltage - Power supply (Vcc/Vdd) : 3V to 5.5V

Data converter: A/D 24x12b, 24x10b

Oscillator type: Internal

Operating temperature: -40°C to 105°C (TA)

Installation type: Surface mount type

Package: 144-LFQFP (20x20)


Typical applications

The R7F7010543AFP microcontroller is specifically designed for a variety of automotive body applications, including

- Body control module

- Door and window control system

- Internal and external lighting systems

- Seat control system

- Access control system

- Automotive safety system

- Climate control system以上翻译结果来自有道神经网络翻译(YNMT)· 通用场景
