The ISL58303DRTZ is a high-speed three-channel output laser diode driver designed to support the Pico projection module of the color field sequential laser light source. The outputs can be combined to achieve a peak total current greater than 3. 6A. The output channel is designed with independent programmable bias and threshold adjustment to support various laser diode manufacturers.

The ISL58303DRTZ offers outstanding power efficiency and a high degree of system integration, enabling compact and cost-effective system designs. To help reduce laser speckle, the ISL58303DRTZ laser driver features a high-frequency modulation input to modulate laser pulses. This can be used to achieve output pulses less than 1ns. The interface with the system is accomplished through a high-speed serial bus composed of SEN, SCLK and SDIO.

Main functional characteristics

A complete triple programmable laser diode driver

The maximum output current per channel is 800mA

Each channel has a peak output current of 1200mA

Multiple channels and multiple chips can be combined to meet the highest current requirements

The ISL58303 features all N-MOS output channels (IOUT1, IOUT2 and IOUT3) for general anode laser diode configuration

Independent output channel enable

Programmable threshold DAC and color DAC for each channel

Supports high-frequency modulation (HFM), capable of simultaneously switching all three outputs to generate a pulse width of less than 1ns.

Fast SPI serial interface

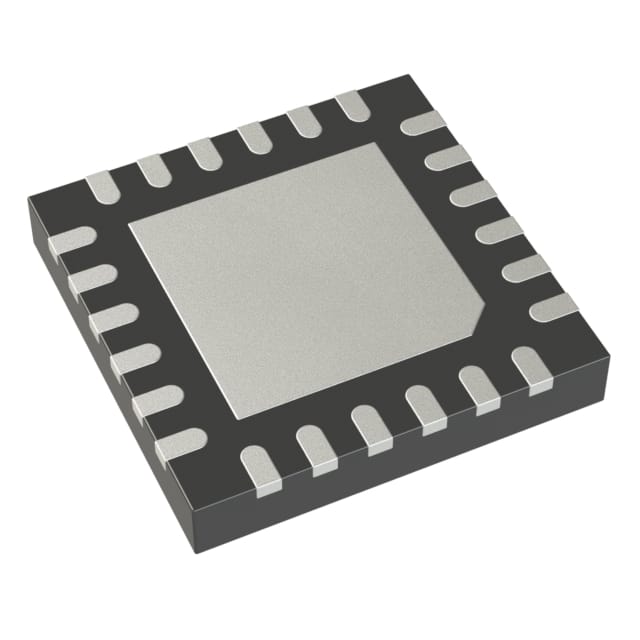

Space-saving package: 24 Ld 4mmx4mm TQFN

Typical applications

RGB color field sequential laser projection system

Flight time measurement system

High-speed/high-current laser diode system
