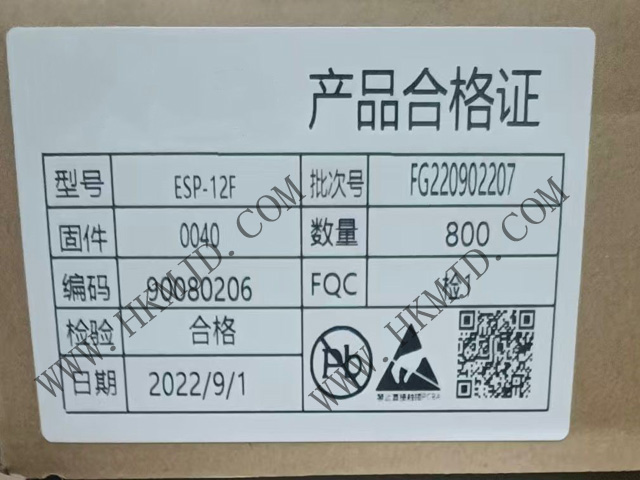

For picture reference, please see the specifications
< >

Commodity Model:ESP-12F

Trade Name:WiFi Module

Brand:Ai-Thinker

Particular Year:22+

Package:SMD-22

Delivery Date:New and Original

Stock: 2400pcs

Quantity:
Online Inquiry

Contacts:

E-Mail:

Contact Number:

Corporate Name:

Product Parameters

Manufacturer
Ai-Thinker
Model
ESP-12F
Package
SMD-22
Describe
A small, low-power Wi-Fi module based on the ESP8266 chip

Product Description

The ESP-12F WiFi module was developed by Ai-Thinker Technology. Its core processor, the ESP8266, integrates the industry-leading Tensilica L106 ultra-low-power 32-bit microcontroller, featuring a compact package design, support for 16-bit lightweight mode, operating frequencies of 80 MHz and 160 MHz, compatibility with real-time operating systems (RTOS), and an integrated Wi-Fi MAC/BB/RF/PA/LNA module.


The ESP-12F WiFi module supports the IEEE 802.11 b/g/n standard protocols and includes a complete TCP/IP protocol stack. Users can use this module to add network functionality to existing devices or build independent network controllers.


ESP-12F Core Features

• High integration: ESP8266EX + Flash + RF front end (PA/LNA) + PCB antenna integrated into a 24 mm × 16 mm × 3 mm SMD-22 package

• Processor: Tensilica L106 32-bit MCU, operating frequency 80/160 MHz, supports RTOS

• Wireless Protocol: IEEE 802.11 b/g/n 2.4 GHz, complete TCP/IP protocol stack, with built-in lwIP

• Rich Interfaces: UART, SPI, I²C, I²S, PWM, GPIO, ADC (10-bit × 1)

• Operating voltage: 3.0 V – 3.6 V, deep sleep current ≈ 20 µA

• Serial port rate: up to 4 Mbps, default 115200 bps

• Operating/storage temperature: -40 °C to +85 °C / -40 °C to +125 °C

• Certifications: FCC, CE, SRRC, REACH, RoHS, etc.


Typical applications for ESP-12F

• Smart home (smart plugs, LED lights, thermostats)

• Industrial wireless control (PLC, HMI, sensor networks)

• Consumer electronics (wearable devices, wireless positioning beacons)

• IoT gateway (MQTT/HTTP cloud connection)
