Trade Name:FPGA - Field Programmable Gate Array
Brand:Lattice
Particular Year:24+
Package:CABGA-554
Delivery Date:New and Original
Stock: 3000pcs

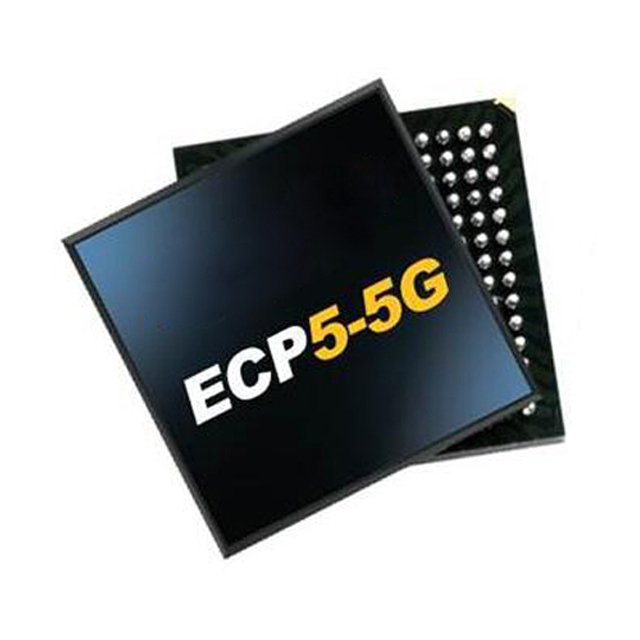

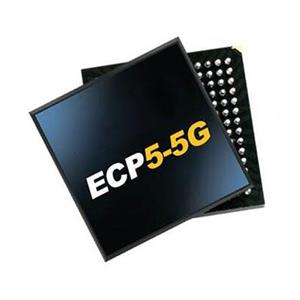

LFE5UM5G-45F-8BG554I: ECP5-5G Series FPGA (Field Programmable Gate Array) IC, CABGA-554
- The ECP5-5G breaks power, size and cost constraints for bridging as well as acceleration applications.
- At a lower cost than competing FPGA products, the ECP5-5G devices are dedicated to interconnecting ASICs and ASSPs using better cabling architectures, dual-channel SERDES, and an enhanced DSP module that reduces multiplier resource usage by up to a factor of four.
- Available in a 23x23 mm, 0.5mm pin pitch package with up to 85K LUTs with SERDES, the package is appropriately pin-streamlined to facilitate the use of today's low-cost PCB routing techniques.
- Static and dynamic power consumption is less than 0.25W with single-channel SERDES and less than 0.5W with four-channel SERDES.
Basic Information:
Model No.: LFE5UM5G-45F-8BG554I
LUT: 44
sysMEM block (18 Kbit): 108
Embedded memory: 1944 Kbit
Distributed RAM bits: 351 Kbit
18 x 18 Multiplier: 72
SERDES (dual/channel): 2 / 4
PLL/DLL: 4 / 4
LFE5UM5G-45F-8BG554I - Product Attributes:
Series: ECP5-5G
Number of LAB/CLB: 11000
Number of Logic Elements/Cells: 44000
Total RAM Bits: 1990656
Number of I/Os: 245
Voltage - Supply: 1.045V ~ 1.155V
Mounting Type: Surface Mount
Operating Temperature: -40°C ~ 100°C (TJ)
Package/Housing: 554-FBGA
Supplier Device Package: 554-CABGA (23x23)
